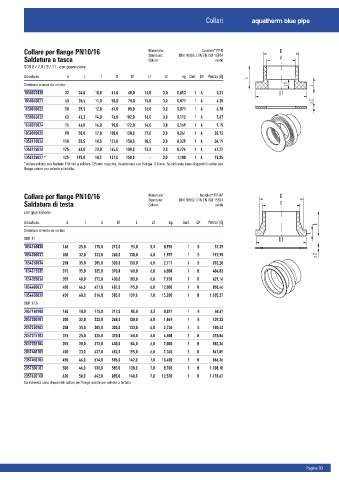

Page 95 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Collari aquatherm blue pipe

Collare per flange PN10/16 Materiale: DIN 16962, DIN EN ISO 15874 D
fusiolen® PP-R
Standard:
Saldatura a tasca Colore: verde d
SDR 6 / 7,4 / 9 / 11 - con guarnizione
Articolo no. d L l D D1 z1 z2 kg Conf. GP Prezzo [€] L
Saldatura a tasca da un lato z 1 l
1050032020 32 34,0 10,0 41,0 68,0 16,0 3,0 0,053 1 A 3,21 D1
1050040021 40 35,5 11,0 50,0 78,0 15,0 3,0 0,071 1 A 4,35 z 2
1050050022 50 39,5 12,0 61,0 88,0 16,0 3,0 0,071 1 A 6,78
1050063023 63 43,5 14,0 76,0 102,0 16,0 3,0 0,112 1 A 7,67
1050075024 75 46,0 16,0 90,0 122,0 16,0 3,0 0,169 1 A 9,15
1050090025 90 50,0 17,0 108,0 138,0 17,0 3,0 0,261 1 A 20,72
1050110026 110 55,5 18,5 131,0 158,0 18,5 3,0 0,329 1 A 34,19
1050125028 125 63,0 20,0 165,0 188,0 23,0 3,0 0,724 1 A 42,22
1050125027 * 125 195,0 18,5 131,0 158,0 - 3,0 1,180 1 A 75,35
*collare ridotto con battuta 110 mm a saldare 125 mm maschio; da abbinare con flangia 110 mm. Su richiesta sono disponibili collari per
flange adatte per valvole a farfalla.

Collare per flange PN10/16 Materiale: fusiolen® PP-RP D D
Saldatura di testa Standard: DIN 16962, DIN EN ISO 15874 d d
Colore:
verde
con guarnizione
Articolo no. d l D D1 L z2 kg Conf. GP Prezzo [€] L L
Saldatura di testa da un lato
l l
SDR 11 D1 D1
1054160030 160 25,0 175,0 212,0 93,0 3,0 0,955 1 B 51,39
1054200032 200 32,0 232,0 268,0 130,0 6,0 1,957 1 B 192,95 z 2 z 2
1054250034 250 35,0 285,0 320,0 130,0 6,0 2,717 1 B 202,28
1054315035 315 35,0 335,0 370,0 168,0 6,0 6,000 1 B 404,83
1054355036 355 40,0 373,0 430,0 180,0 6,0 7,930 1 B 629,16
1054400037 400 46,0 427,0 482,0 195,0 6,0 12,000 1 B 858,46
1054450038 450 60,0 514,0 585,0 139,0 7,0 15,200 1 B 1.105,27
SDR 17,6
2057160100 160 18,0 175,0 212,0 80,0 3,0 0,821 1 B 48,67
2057200101 200 32,0 232,0 268,0 130,0 6,0 1,849 1 B 139,33
2057250102 250 35,0 285,0 320,0 130,0 6,0 2,736 1 B 180,42
2057315103 315 25,0 335,0 370,0 168,0 6,0 4,500 1 B 370,84
2057355104 355 30,0 373,0 430,0 184,0 6,0 7,000 1 B 582,36
2057400105 400 33,0 427,0 482,0 195,0 6,0 7,360 1 B 841,85
2057450106 450 46,0 514,0 585,0 142,0 7,0 10,400 1 B 866,36
2057500107 500 46,0 530,0 585,0 138,0 7,0 8,700 1 B 1.108,18
2057630108 630 50,0 642,0 685,0 140,0 7,0 12,530 1 B 1.478,67
Su richiesta sono disponibili collari per flange adatte per valvole a farfalla.

Pagina 93
