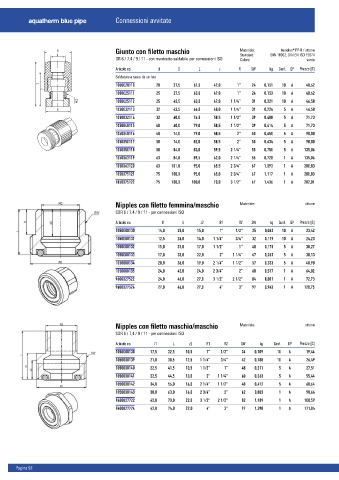

Page 94 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

aquatherm blue pipe Connessioni avvitate

D Giunto con filetto maschio Materiale: fusiolen® PP-R / ottone
d Standard: DIN 16962, DIN EN ISO 15874
DR 6 / 7,4 / 9 / 11 - con manicotto saldabile per connessioni ISO Colore: verde
Articolo no. d D L z R SW kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato
1050020110 20 37,5 61,5 47,0 1“ 24 0,151 10 A 40,62
L
z
1050025111 25 37,5 63,0 47,0 1“ 24 0,153 10 A 40,62
1050025112 25 43,5 63,0 47,0 1 1/4“ 31 0,221 10 A 46,58
SW
R 1050032113 32 43,5 66,0 48,0 1 1/4“ 31 0,226 5 A 46,58
1050032114 32 60,0 76,5 58,5 1 1/2“ 39 0,408 5 A 71,73
1050040115 40 60,0 79,0 58,5 1 1/2“ 39 0,414 5 A 71,73
1050040116 40 74,0 79,0 58,5 2“ 50 0,650 5 A 98,00
1050050117 50 74,0 82,0 58,5 2“ 50 0,634 5 A 98,00
1050050118 50 84,0 83,0 59,5 2 1/4“ 55 0,750 5 A 135,06
1050063119 63 84,0 89,5 62,0 2 1/4“ 55 0,728 1 A 135,06
1050063120 63 101,0 95,0 65,5 2 3/4“ 67 1,093 1 A 200,83
1050075121 75 100,0 95,0 65,0 2 3/4“ 67 1,117 1 A 200,83
1050075122 75 100,0 100,0 70,0 3 1/2“ 67 1,436 1 A 282,01

Nipples con filetto femmina/maschio Materiale: ottone
SDR 6 / 7,4 / 9 / 11 - per connessioni ISO
Articolo no. l1 L z2 R1 R2 SW kg Conf. GP Prezzo [€]
1050000130 14,0 25,0 15,0 1“ 1/2“ 25 0,063 10 A 23,42
1050000131 12,5 26,0 14,0 1 1/4“ 3/4“ 32 0,119 10 A 24,23
1050000132 15,0 31,0 17,0 1 1/2“ 1“ 40 0,175 5 A 30,27
1050000133 17,0 33,0 22,0 2“ 1 1/4“ 47 0,263 5 A 38,13
1050000134 20,0 36,0 19,0 2 1/4“ 1 1/2“ 57 0,333 5 A 48,90
1050000135 24,0 42,0 24,0 2 3/4“ 2“ 68 0,517 1 A 64,02
9600027522 24,0 46,0 27,0 3 1/2“ 2 1/2“ 84 0,801 1 A 72,73
9600027524 27,0 46,0 27,0 4“ 3“ 97 0,943 1 A 128,75

Nipples con filetto maschio/maschio Materiale: ottone
SDR 6 / 7,4 / 9 / 11 - per connessioni ISO

Articolo no. l1 L z2 R1 R2 SW kg Conf. GP Prezzo [€]
1050000138 17,5 32,5 10,5 1“ 1/2“ 34 0,109 10 A 19,44
1050000139 21,0 38,5 12,5 1 1/4“ 3/4“ 42 0,188 10 A 26,49
1050000140 22,5 41,5 13,5 1 1/2“ 1“ 48 0,211 5 A 27,51
1050000141 22,5 44,5 13,0 2“ 1 1/4“ 60 0,363 5 A 55,44
1050000142 34,0 56,0 16,0 2 1/4“ 1 1/2“ 48 0,472 5 A 68,64
1050000143 38,0 63,0 16,0 2 3/4“ 2“ 62 0,803 1 A 90,66
9600027722 42,0 70,0 22,0 3 1/2“ 2 1/2“ 82 1,189 1 A 108,59
9600027724 42,0 74,0 22,0 4“ 3“ 97 1,398 1 A 171,84

Pagina 92
