P. 106

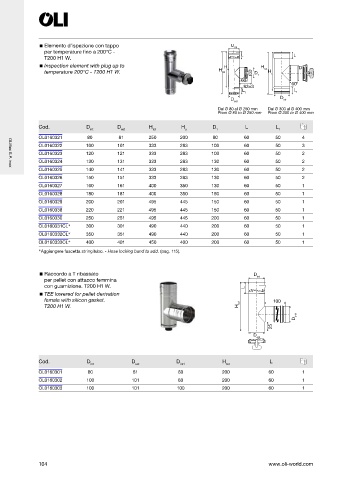

Elemento d’ispezione con tappo D int
per temperature no a 200°C -
T200 H1 W. L L
Inspection element with plug up to H H D
temperature 200°C - T200 H1 W. H tot u D tot H u 1
1
60
93±3 60
L L
1 1
D est D int
Dal Ø 80 al Ø 250 mm Dal Ø 300 al Ø 400 mm
From Ø 80 to Ø 250 mm From Ø 300 to Ø 400 mm
Cod. D D H H D L L
int est tot u 1 1
OL0160321 80 81 250 200 80 60 50 4
OL0160322 100 101 333 283 100 60 50 3
OL0160323 120 121 333 283 100 60 50 2
OL0160324 130 131 333 283 130 60 50 2
OL0160325 140 141 333 283 130 60 50 2
OLI ex S.P. inox
OL0160326 150 151 333 283 130 60 50 2
OL0160327 160 161 400 350 130 60 50 1
OL0160328 180 181 400 350 150 60 50 1
OL0160329 200 201 495 445 150 60 50 1
OL0160338 220 221 495 445 150 60 50 1
OL0160330 250 251 495 445 200 60 50 1
OL0160331CL 300 301 490 440 200 60 50 1
OL0160332CL 350 351 490 440 200 60 50 1
OL0160333CL 400 401 450 400 200 60 50 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 115).
Raccordo a T ribassato D int
per pellet con attacco femmina
con guarnizione. T200 H1 W. L
TEE lowered for pellet derivation
female with silicon gasket. 100
T200 H1 W. H tot
D int1
25
D
est
Cod. D D D H L
int est int1 tot
OL0160301 80 81 80 200 60 1
OL0160302 100 101 80 200 60 1
OL0160303 100 101 100 200 60 1
104 www.oli-world.com
