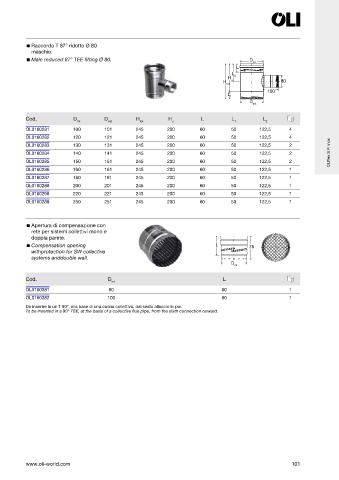

P. 103
Raccordo T 87° ridotto Ø 80
maschio.
Male reduced 87° TEE fitting Ø 80. D
int
L
L
H 2
H u 80
tot
100
L
1
D est
Cod. D D H H L L L
int est tot u 1 2
OL0160281 100 101 245 200 60 50 122,5 4
OL0160282 120 121 245 200 60 50 122,5 4
OL0160283 130 131 245 200 60 50 122,5 2
OL0160284 140 141 245 200 60 50 122,5 2 OLI ex S.P. inox
OL0160285 150 151 245 200 60 50 122,5 2
OL0160286 160 161 245 200 60 50 122,5 1
OL0160287 180 181 245 200 60 50 122,5 1
OL0160288 200 201 245 200 60 50 122,5 1
OL0160298 220 221 245 200 60 50 122,5 1
OL0160289 250 251 245 200 60 50 122,5 1
Apertura di compensazione con
rete per sistemi collettivi mono e
doppia parete.
Compensation opening L 75
withprotection for SW collective
systems anddouble wall.
D
int
Cod. D L
int
OL0160381 80 60 1
OL0160382 100 60 1
Da inserire in un T 90°, alla base di una canna collettiva, dal sesto allaccio in poi.
To be inserted in a 90° TEE, at the basis of a collective flue pipe, from the sixth connection onward.
