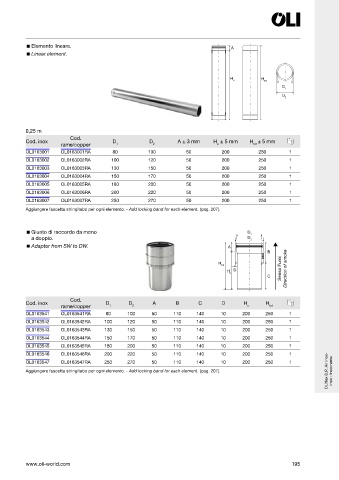

P. 197
Elemento lineare. A
Linear element.
H u H tot
D
1
D 2
0,25 m
Cod.
Cod. inox D D A ± 3 mm H ± 5 mm H ± 5 mm
rame/copper 1 2 u tot
OL0163001 OL0163001RA 80 100 50 200 250 1
OL0163002 OL0163002RA 100 120 50 200 250 1
OL0163003 OL0163003RA 130 150 50 200 250 1
OL0163004 OL0163004RA 150 170 50 200 250 1
OL0163005 OL0163005RA 180 200 50 200 250 1
OL0163006 OL0163006RA 200 220 50 200 250 1
OL0163007 OL0163007RA 250 270 50 200 250 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
Giunto di raccordo da mono D 1
a doppio. D 2
Adapter from SW to DW. A
B
H tot
H u D Senso Fumi Direction of smoke
C
Cod.
Cod. inox D D A B C D H H
rame/copper 1 2 u tot
OL0163541 OL0163541RA 80 100 50 110 140 10 200 250 1
OL0163542 OL0163542RA 100 120 50 110 140 10 200 250 1
OL0163543 OL0163543RA 130 150 50 110 140 10 200 250 1
OL0163544 OL0163544RA 150 170 50 110 140 10 200 250 1
OL0163545 OL0163545RA 180 200 50 110 140 10 200 250 1
OL0163546 OL0163546RA 200 220 50 110 140 10 200 250 1
OL0163547 OL0163547RA 250 270 50 110 140 10 200 250 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207). OLI ex D.P. Air inox- inox - inox-rame
