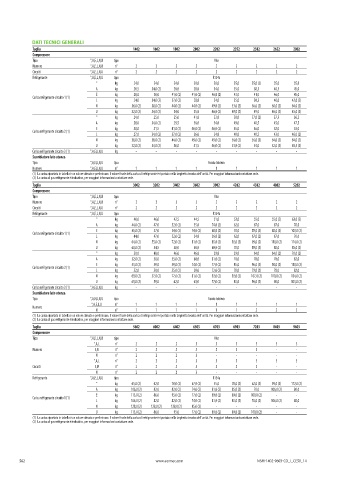

DATI TECNICI GENERALI
Taglia 1402 1602 1802 2002 2202 2352 2502 2652 2802
Compressore
Tipo °,A,E,L,N,U tipo Vite
Numero °,A,E,L,N,U n° 2 2 2 2 2 2 2 2 2
Circuiti °,A,E,L,N,U n° 2 2 2 2 2 2 2 2 2
Refrigerante °,A,E,L,N,U tipo R134a
° kg 24,0 24,0 24,0 30,0 30,0 35,0 35,0 (2) 35,0 35,0
A kg 26,5 34,0 (2) 28,0 28,0 34,0 35,0 38,5 40,5 45,0
E kg 28,0 30,0 41,0 (2) 41,0 (2) 46,0 (2) 43,0 41,0 46,0 45,0
Carica refrigerante circuito 1 (1)
L kg 24,0 34,0 (2) 37,0 (2) 28,0 34,0 35,0 38,5 40,0 42,0 (2)
N kg 36,0 (2) 38,0 (2) 44,0 (2) 44,0 (2) 49,0 (2) 53,0 (2) 56,0 (2) 60,0 (2) 64,0 (2)
U kg 32,0 (2) 34,0 (2) 34,0 35,0 46,0 (2) 49,0 (2) 49,0 46,0 (2) 45,0 (2)
° kg 24,0 25,0 25,0 41,0 33,0 38,0 37,0 (2) 37,5 36,5
A kg 28,0 34,0 (2) 29,5 36,0 34,0 49,0 40,5 45,0 47,5
E kg 30,0 31,5 41,0 (2) 46,0 (2) 46,0 (2) 45,0 46,0 52,0 53,0
Carica refrigerante circuito 2 (1)
L kg 27,0 34,0 (2) 37,0 (2) 36,0 34,0 40,0 40,5 43,0 46,0 (2)
N kg 36,0 (2) 38,0 (2) 44,0 (2) 49,0 (2) 49,0 (2) 56,0 (2) 56,0 (2) 64,0 (2) 64,0 (2)
U kg 32,0 (2) 34,0 (2) 36,0 41,5 46,0 (2) 53,0 (2) 54,0 52,0 (2) 48,5 (2)
Carica refrigerante circuito 3 (1) °,A,E,L,N,U kg - - - - - - - - - ARIA-ACQUA
Scambiatore lato utenza
Tipo °,A,E,L,N,U tipo Fascio tubiero
Numero °,A,E,L,N,U n° 1 1 1 1 1 1 1 1 1
(1) La carica riportata in tabella è un valore stimato e preliminare. Il valore finale della carica di refrigerante è riportato nella targhetta tecnica dell’unità. Per maggiori informazioni contattare sede.
(2) La carica di gas refrigerante è indicativa, per maggiori informazioni contattare sede.
Taglia 3002 3202 3402 3602 3902 4202 4502 4802 5202
Compressore
Tipo °,A,E,L,N,U tipo Vite
Numero °,A,E,L,N,U n° 2 2 2 2 2 2 2 2 2
Circuiti °,A,E,L,N,U n° 2 2 2 2 2 2 2 2 2
Refrigerante °,A,E,L,N,U tipo R134a
° kg 40,0 46,0 42,5 44,5 51,0 52,0 55,0 55,0 (2) 63,0 (2)
A kg 44,0 (2) 47,0 52,0 (2) 55,0 74,0 (2) 62,0 67,0 67,0 70,0
E kg 45,0 (2) 57,0 54,0 (2) 74,0 (2) 60,0 (2) 70,0 89,0 (2) 80,0 (2) 100,0 (2)
Carica refrigerante circuito 1 (1)
L kg 44,0 47,0 52,0 (2) 54,0 56,0 (2) 62,0 67,0 (2) 67,0 70,0
N kg 64,0 (2) 55,0 (2) 72,0 (2) 81,0 (2) 85,0 (2) 92,0 (2) 99,0 (2) 110,0 (2) 114,0 (2)
U kg 60,0 (2) 54,5 58,0 58,0 60,0 (2) 70,0 89,0 (2) 80,0 85,0 (2)
° kg 50,0 48,0 46,0 46,0 59,0 59,0 64,0 64,0 (2) 70,0 (2)
A kg 52,0 (2) 50,0 55,0 (2) 60,0 81,0 (2) 70,0 78,0 78,0 82,0
E kg 53,0 (2) 59,0 59,0 (2) 74,0 (2) 77,0 (2) 85,0 96,0 (2) 90,0 (2) 110,0 (2)
Carica refrigerante circuito 2 (1)
L kg 52,0 50,0 55,0 (2) 58,0 72,0 (2) 70,0 79,0 (2) 78,0 82,0
N kg 69,0 (2) 57,0 (2) 77,0 (2) 81,0 (2) 92,0 (2) 92,0 (2) 107,0 (2) 110,0 (2) 124,0 (2)
U kg 65,0 (2) 59,0 62,0 63,0 77,0 (2) 85,0 96,0 (2) 90,0 103,0 (2)

Carica refrigerante circuito 3 (1) °,A,E,L,N,U kg - - - - - - - - -
Scambiatore lato utenza
Tipo °,A,E,L,N,U tipo Fascio tubiero
°,A,E,L,U n° 1 1 1 1 1 1 1 1 1
Numero
N n° 1 1 1 1 1 1 2 2 2
(1) La carica riportata in tabella è un valore stimato e preliminare. Il valore finale della carica di refrigerante è riportato nella targhetta tecnica dell’unità. Per maggiori informazioni contattare sede.
(2) La carica di gas refrigerante è indicativa, per maggiori informazioni contattare sede.
Taglia 5602 6002 6402 6503 6703 6903 7203 8403 9603
Compressore
Tipo °,A,E,L,N,U tipo Vite
°,A,L n° 2 2 2 3 3 3 3 3 3
Numero E,U n° 2 2 2 3 3 3 3 - -
N n° 2 2 2 3 - - - - -
°,A,L n° 2 2 2 3 3 3 3 3 3
Circuiti E,U n° 2 2 2 3 3 3 3 - -
N n° 2 2 2 3 - - - - -
Refrigerante °,A,E,L,N,U tipo R134a
° kg 65,0 (2) 62,0 70,0 (2) 67,0 (2) 55,0 78,0 (2) 62,0 (2) 99,0 (2) 112,0 (2)
A kg 106,0 (2) 82,0 82,0 (2) 74,0 (2) 81,0 (2) 85,0 (2) 70,0 106,0 (2) 80,0
E kg 113,0 (2) 86,0 95,0 (2) 77,0 (2) 89,0 (2) 89,0 (2) 100,0 (2) - -
Carica refrigerante circuito 1 (1)
L kg 106,0 (2) 82,0 82,0 (2) 74,0 (2) 81,0 (2) 85,0 (2) 70,0 (2) 106,0 (2) 80,0
N kg 128,0 (2) 128,0 (2) 138,0 (2) 85,0 (2) - - - - -
U kg 113,0 (2) 86,0 95,0 77,0 (2) 89,0 (2) 89,0 (2) 100,0 (2) - -

(1) La carica riportata in tabella è un valore stimato e preliminare. Il valore finale della carica di refrigerante è riportato nella targhetta tecnica dell’unità. Per maggiori informazioni contattare sede.
(2) La carica di gas refrigerante è indicativa, per maggiori informazioni contattare sede.
