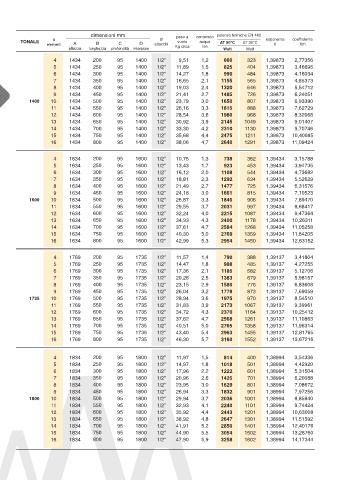

Page 32 - GLOBAL RADIATORI - CATALOGO GRIGIO

dimensioni mm peso a contenuto potenze termiche EN 442
n Ø esponente coeffi ciente
TONALE vuoto acqua ∆T 50°C ∆T 30°C
elementi A B C D attacchi Kg circa litri n Km
altezza lunghezza profondità interasse Watt Watt
4 1434 200 95 1400 1/2” 9,51 1,2 660 323 1,39873 2,77356
5 1434 250 95 1400 1/2” 11,89 1,5 825 404 1,39873 3,46695
6 1434 300 95 1400 1/2” 14,27 1,8 990 484 1,39873 4,16034
7 1434 350 95 1400 1/2” 16,65 2,1 1155 565 1,39873 4,85373
8 1434 400 95 1400 1/2” 19,03 2,4 1320 646 1,39873 5,54712
9 1434 450 95 1400 1/2” 21,41 2,7 1485 726 1,39873 6,24051
1400 10 1434 500 95 1400 1/2” 23,79 3,0 1650 807 1,39873 6,93390
11 1434 550 95 1400 1/2” 26,16 3,3 1815 888 1,39873 7,62729
12 1434 600 95 1400 1/2” 28,54 3,6 1980 968 1,39873 8,32068
13 1434 650 95 1400 1/2” 30,92 3,9 2145 1049 1,39873 9,01407
14 1434 700 95 1400 1/2” 33,30 4,2 2310 1130 1,39873 9,70746
15 1434 750 95 1400 1/2” 35,68 4,4 2475 1211 1,39873 10,40085
16 1434 800 95 1400 1/2” 38,06 4,7 2640 1291 1,39873 11,09424

4 1634 200 95 1600 1/2” 10,75 1,3 738 362 1,39434 3,15788
5 1634 250 95 1600 1/2” 13,43 1,7 923 453 1,39434 3,94735
6 1634 300 95 1600 1/2” 16,12 2,0 1108 544 1,39434 4,73682
7 1634 350 95 1600 1/2” 18,81 2,3 1292 634 1,39434 5,52629
8 1634 400 95 1600 1/2” 21,49 2,7 1477 725 1,39434 6,31576
9 1634 450 95 1600 1/2” 24,18 3,0 1661 815 1,39434 7,10523
1600 10 1634 500 95 1600 1/2” 26,87 3,3 1846 906 1,39434 7,89470
11 1634 550 95 1600 1/2” 29,55 3,7 2031 997 1,39434 8,68417
12 1634 600 95 1600 1/2” 32,24 4,0 2215 1087 1,39434 9,47364
13 1634 650 95 1600 1/2” 34,93 4,3 2400 1178 1,39434 10,26311
14 1634 700 95 1600 1/2” 37,61 4,7 2584 1268 1,39434 11,05258
15 1634 750 95 1600 1/2” 40,30 5,0 2769 1359 1,39434 11,84205
16 1634 800 95 1600 1/2” 42,99 5,3 2954 1450 1,39434 12,63152

4 1769 200 95 1735 1/2” 11,57 1,4 790 388 1,39137 3,41804
5 1769 250 95 1735 1/2” 14,47 1,8 988 485 1,39137 4,27255
6 1769 300 95 1735 1/2” 17,36 2,1 1185 582 1,39137 5,12706
7 1769 350 95 1735 1/2” 20,26 2,5 1383 679 1,39137 5,98157
8 1769 400 95 1735 1/2” 23,15 2,9 1580 776 1,39137 6,83608
9 1769 450 95 1735 1/2” 26,04 3,2 1778 873 1,39137 7,69059
1735 10 1769 500 95 1735 1/2” 28,94 3,6 1975 970 1,39137 8,54510
11 1769 550 95 1735 1/2” 31,83 3,9 2173 1067 1,39137 9,39961
12 1769 600 95 1735 1/2” 34,72 4,3 2370 1164 1,39137 10,25412
13 1769 650 95 1735 1/2” 37,62 4,7 2568 1261 1,39137 11,10863
14 1769 700 95 1735 1/2” 40,51 5,0 2765 1358 1,39137 11,96314
15 1769 750 95 1735 1/2” 43,40 5,4 2963 1455 1,39137 12,81765
16 1769 800 95 1735 1/2” 46,30 5,7 3160 1552 1,39137 13,67216

4 1834 200 95 1800 1/2” 11,97 1,5 814 400 1,38994 3,54336
5 1834 250 95 1800 1/2” 14,97 1,8 1018 501 1,38994 4,42920
6 1834 300 95 1800 1/2” 17,96 2,2 1222 601 1,38994 5,31504
7 1834 350 95 1800 1/2” 20,96 2,6 1425 701 1,38994 6,20088
8 1834 400 95 1800 1/2” 23,95 3,0 1629 801 1,38994 7,08672
9 1834 450 95 1800 1/2” 26,94 3,3 1832 901 1,38994 7,97256
1800 10 1834 500 95 1800 1/2” 29,94 3,7 2036 1001 1,38994 8,85840
11 1834 550 95 1800 1/2” 32,93 4,1 2240 1101 1,38994 9,74424
12 1834 600 95 1800 1/2” 35,92 4,4 2443 1201 1,38994 10,63008
13 1834 650 95 1800 1/2” 38,92 4,8 2647 1301 1,38994 11,51592
14 1834 700 95 1800 1/2” 41,91 5,2 2850 1401 1,38994 12,40176
15 1834 750 95 1800 1/2” 44,90 5,5 3054 1502 1,38994 13,28760
16 1834 800 95 1800 1/2” 47,90 5,9 3258 1602 1,38994 14,17344
