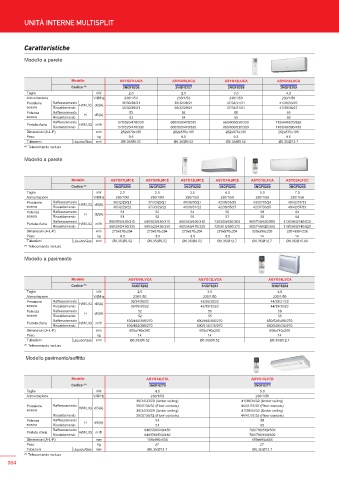

Page 64 - FUJITSU - SPLIT-MULTISPLIT

UNITÀ INTERNE MULTISPLIT

Caratteristiche
Modello a parete

Modello ASYG07LUCA ASYG09LUCA ASYG12LUCA ASYG14LUCA
Codice ( * ) 3 N G F 8 2 0 6 3 N G F 8 2 0 7 3 N G F 8 2 0 8 3 N G F 8 2 0 9
Taglie kW 2.0 2.5 3.5 4.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento 35/30/28/21 36/32/28/21 37/34/31/21 41/36/33/25
sonora Riscaldamento H/M/L/Q dB(A) 35/30/28/21 36/32/28/21 37/34/31/21 41/36/34/27
Potenza Raffrescamento 53 54 55 59
sonora Riscaldamento H dB(A) 53 54 55 59
Raffrescamento 570/520/470/330 600/550/470/330 660/600/530/330 710/640/570/390
3
Portata d'aria H/M/L/Q m /h
Riscaldamento 570/520/470/330 600/550/470/330 660/600/530/330 710/640/590/430
Dimensioni (A-L-P) mm 282x870x185 282x870x185 282x870x185 282x870x185
Peso kg 9.5 9.5 9.5 9.5
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7
( * ) Telecomando incluso
Modello a parete

Modello ASYG07LMCE ASYG09LMCE ASYG12LMCE ASYG14LMCE ASYG18LFCA ASYG24LFCC
Codice ( * ) 3NGF8290 3NGF8291 3NGF8292 3NGF8293 3 N G F 8 2 6 0 3 N G F 8 2 6 5
Taglie kW 2.0 2.5 3.5 4.0 5.0 7.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento 36/32/29/21 37/33/29/21 40/36/30/21 42/38/33/25 43/37/33/26 49/42/37/33
sonora Riscaldamento H/M/L/Q dB(A) 36/32/29/22 37/33/29/22 40/36/31/22 42/38/35/27 42/37/33/25 48/42/37/33
Potenza Raffrescamento 51 52 54 56 58 64
sonora Riscaldamento H dB(A) 51 52 55 57 58 64
Raffrescamento 560/500/430/310 600/520/430/310 660/560/450/310 730/600/530/360 900/740/620/550 1120/900/740/620
3
Portata d'aria H/M/L/Q m /h
Riscaldamento 560/500/430/330 600/520/430/330 660/560/470/330 730/615/560/375 900/740/620/550 1100/900/740/620
Dimensioni (A-L-P) mm 270x870x204 270x870x204 270x870x204 270x870x204 320x998x238 320×998×238
Peso kg 8.5 8.5 8.5 8.5 14 14
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7 Ø6.35/Ø12.7 Ø6.35/Ø15.88
( * ) Telecomando incluso
Modello a pavimento

Modello AGYG09LVCA AGYG12LVCA AGYG14LVCA
Codice ( * ) 3 N G F 8 2 6 2 3 N G F 8 2 6 3 3 N G F 8 2 6 4
Taglie kW 2.5 3.5 4.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento 39/34/28/22 42/36/30/22 44/38/31/22
sonora Riscaldamento H/M/L/Q dB(A) 39/35/30/22 42/38/32/22 44/39/33/22
Potenza Raffrescamento 52 55 56
sonora Riscaldamento H dB(A) 52 55 56
Raffrescamento 530/440/360/270 600/490/380/270 650/520/400/270
3
Portata d'aria H/M/L/Q m /h
Riscaldamento 530/460/380/270 600/510/410/270 650/540/430/270
Dimensioni (A-L-P) mm 600x740x200 600x740x200 600x740x200
Peso kg 14 14 14
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7
( * ) Telecomando incluso
Modello pavimento/soffi tto

Modello ABYG14LVTA ABYG18LVTB
Codice * ) 3 N G F 8 2 7 0 3 N G F 8 2 7 1
(
Taglie kW 4.0 5.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50
36/34/33/29 (Under ceiling) 41/38/34/32 (Under ceiling)
Pressione Raffrescamento 39/37/36/32 (Floor console) 44/41/37/35 (Floor console)
sonora H/M/L/Q dB(A) 36/34/33/29 (Under ceiling) 41/38/34/32 (Under ceiling)
Riscaldamento 39/37/36/32 (Floor console) 44/41/37/35 (Floor console)
Potenza Raffrescamento H dB(A) 51 55
sonora Riscaldamento 51 55
Raffrescamento 640/590/540/480 780/700/560/500
Portata d'aria H/M/L/Q m /h
3
Riscaldamento 640/590/540/480 780/700/560/500
Dimensioni (A-L-P) mm 199x990x655 199x990x655
Peso kg 27 27
Tubazioni Liquido/Gas mm Ø6.35/Ø12.7 Ø6.35/Ø12.7
( * ) Telecomando incluso
064
