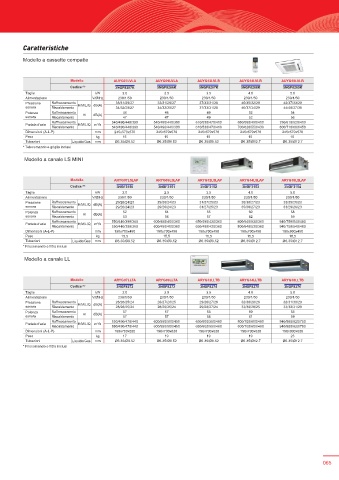

Page 65 - FUJITSU - SPLIT-MULTISPLIT

Caratteristiche
Modello a cassette compatte

Modello AUYG07LVLA AUYG09LVLA AUYG12LVLB AUYG14LVLB AUYG18LVLB
(
Codice * ) 3NGF8287K 3 N G F 8 2 6 6 K 3 N G F 8 2 6 7 K 3 N G F 8 2 6 8 K 3 N G F 8 2 6 9 K
Taglie kW 2.0 2.5 3.5 4.0 5.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento 33/31/29/27 33/31/29/27 37/33/31/28 40/35/32/29 42/37/33/29
sonora Riscaldamento H/M/L/Q dB(A) 34/32/29/27 34/32/29/27 37/33/31/28 40/37/34/29 44/40/37/30
Potenza Raffrescamento 46 46 49 52 54
sonora Riscaldamento H dB(A) 47 47 49 52 56
Raffrescamento 540/490/440/390 540/490/440/390 610/530/470/410 680/580/490/410 750/610/520/410
3
Portata d'aria H/M/L/Q m /h
Riscaldamento 540/490/440/390 540/490/440/390 610/530/470/410 700/620/550/430 800/710/600/450
Dimensioni (A-L-P) mm 245x570x570 245x570x570 245x570x570 245x570x570 245x570x570
Peso kg 15 15 15 15 15
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7 Ø6.35/Ø12.7
* Telecomando e griglia inclusi
Modello a canale LS MINI

Modello ARYG07LSLAP ARYG09LSLAP ARYG12LSLAP ARYG14LSLAP ARYG18LSLAP
Codice * ) 3NGF3150 3 N G F 3151 3 N G F 3152 3 N G F 3153 3 N G F 3154
(
Taglie kW 2.0 2.5 3.5 4.0 5.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento 29/26/24/23 29/26/24/23 31/27/25/23 35/30/27/23 33/29/26/23
sonora Riscaldamento H/M/L/Q dB(A) 29/26/24/23 29/26/24/23 31/27/25/23 35/30/27/23 33/29/26/23
Potenza Raffrescamento 52 54 55 60 58
sonora Riscaldamento H dB(A) 53 56 57 62 59
Raffrescamento 550/440/390/360 600/450/400/360 650/490/430/360 800/640/530/360 940/750/540/480
Portata d'aria H/M/L/Q m 3 /h
Riscaldamento 550/440/390/360 600/450/400/360 650/490/430/360 800/640/530/360 940/750/540/480
Dimensioni (A-L-P) mm 198x700x450 198x700x450 198x700x450 198x700x450 198x900x450
Peso kg 15,5 15,5 15,5 15,5 18,5
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7 Ø6.35/Ø12.7
* Filocomando e fi ltro inclusi
Modello a canale LL

Modello ARYG07LLTA ARYG09LLTA ARYG12LLTB ARYG14LLTB ARYG18LLTB
Codice * ) 3NGF8272 3 N G F 8 2 7 3 3 N G F 8 2 7 4 3 N G F 8 2 7 5 3 N G F 8 2 7 6
(
Taglie kW 2.0 2.5 3.5 4.0 5.0
Alimentazione V/Ø/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50
Pressione Raffrescamento H/M/L/Q dB(A) 28/26/25/24 28/27/26/25 29/28/27/26 32/30/28/26 32/31/30/29
sonora Riscaldamento 28/26/25/24 28/26/25/24 29/28/27/24 33/30/28/25 33/32/31/29
Potenza Raffrescamento H dB(A) 57 57 58 60 58
sonora Riscaldamento 57 57 58 61 59
Raffrescamento 550/490/470/440 600/550/500/450 650/600/550/480 800/700/600/480 940/880/820/750
Portata d'aria H/M/L/Q m /h
3
Riscaldamento 550/490/470/440 600/550/500/450 650/600/550/480 800/700/600/480 940/880/820/750
Dimensioni (A-L-P) mm 198x700x620 198x700x620 198x700x620 198x700x620 198x900x620
Peso kg 17 19 19 19 23
Tubazioni Liquido/Gas mm Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø9.52 Ø6.35/Ø12.7 Ø6.35/Ø12.7
* Filocomando e fi ltro inclusi

065
