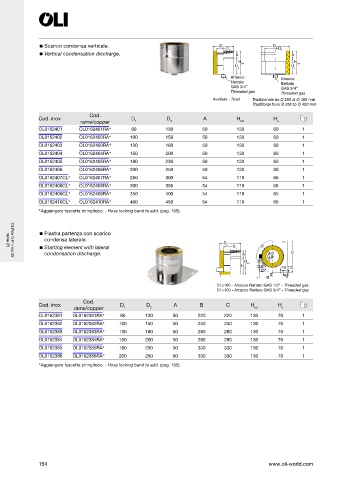

P. 156
Scarico condensa verticale. D 2 D D 2 D
Vertical condensation discharge. 1 A 1 A
H H
H u tot H u tot
Attacco Attacco
filettato filettato
GAS 3/4” GAS 3/4”
Threaded gas Threaded gas
Avvitare - Twist Tradizionale da Ø 250 al Ø 400 mm
Traditional from Ø 250 to Ø 400 mm
Cod.
Cod. inox D D A H H
rame/copper 1 2 tot u
OL0162401 OL0162401RA 80 130 50 130 80 1
OL0162402 OL0162402RA 100 150 50 130 80 1
OL0162403 OL0162403RA 130 180 50 130 80 1
OL0162404 OL0162404RA 150 200 50 130 80 1
OL0162405 OL0162405RA 180 230 50 130 80 1
OL0162406 OL0162406RA 200 250 50 130 80 1
OL0162407CL OL0162407RA 250 300 54 119 65 1
OL0162408CL OL0162408RA 300 350 54 119 65 1
OL0162409CL OL0162409RA 350 400 54 119 65 1
OL0162410CL OL0162410RA 400 450 54 119 65 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
Piastra partenza con scarico
condensa laterale.
D
Starting element with lateral 2 D 1
rame 25
condensation discharge. A 45° C
45°
OLI ex D.P. inox 25
H tot 25
H 10
u 10 12
12
B A 40
D1≤100 - Attacco lettato GAS 1/2” - Threaded gas
D1>100 - Attacco lettato GAS 3/4” - Threaded gas
Cod.
Cod. inox D D A B C H H
rame/copper 1 2 tot u
OL0162381 OL0162381RA 80 130 50 220 220 130 70 1
OL0162382 OL0162382RA 100 150 50 250 250 130 70 1
OL0162383 OL0162383RA 130 180 50 280 280 130 70 1
OL0162384 OL0162384RA 150 200 50 280 280 130 70 1
OL0162385 OL0162385RA 180 230 50 330 330 130 70 1
OL0162386 OL0162386RA 200 250 50 330 330 130 70 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
