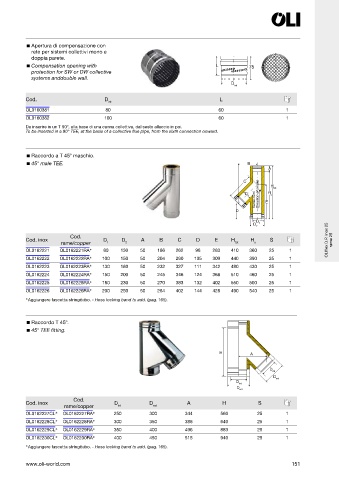

P. 153
Apertura di compensazione con
rete per sistemi collettivi mono e
doppia parete.
Compensation opening with L 75
protection for SW or DW collective
systems anddouble wall.
D int
Cod. D L
int
OL0160381 80 60 1
OL0160382 100 60 1
Da inserire in un T 90°, alla base di una canna collettiva, dal sesto allaccio in poi.
To be inserted in a 90° TEE, at the basis of a collective flue pipe, from the sixth connection onward.
Raccordo a T 45° maschio.
45° male TEE. B
A
C H
Senso fumi E
D 1 Direction of smoke H u tot
D
D
D 2 1
Cod.
Cod. inox D D A B C D E H H S OLI ex D.P. inox 25 rame 25
rame/copper 1 2 tot u
OL0162221 OL0162221RA 80 130 50 186 262 98 283 410 360 25 1
OL0162222 OL0162222RA 100 150 50 204 290 105 309 440 390 25 1
OL0162223 OL0162223RA 130 180 50 232 327 111 342 480 430 25 1
OL0162224 OL0162224RA 150 200 50 245 346 124 368 510 460 25 1
OL0162225 OL0162225RA 180 230 50 270 383 132 402 550 500 25 1
OL0162226 OL0162226RA 200 250 50 284 402 144 428 490 540 25 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
Raccordo T 45°.
45° TEE fitting.
H A
D int
D est
D int
D est
Cod.
Cod. inox D D A H S
rame/copper int est
OL0162227CL OL0162227RA 250 300 344 560 25 1
OL0162228CL OL0162228RA 300 350 386 640 25 1
OL0162229CL OL0162229RA 350 400 496 883 25 1
OL0162230CL OL0162230RA 400 450 515 940 25 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
www.oli-world.com 151
