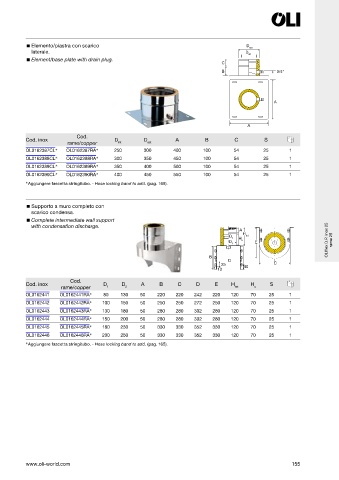

Page 157 - OLI - OLIFLEX
P. 157
Elemento/piastra con scarico D est
laterale. D int
Element/base plate with drain plug.
C
B 3/4”
A
A
Cod.
Cod. inox D D A B C S
rame/copper int est
OL0162387CL OL0162387RA 250 300 400 100 54 25 1
OL0162388CL OL0162388RA 300 350 450 100 54 25 1
OL0162389CL OL0162389RA 350 400 500 100 54 25 1
OL0162390CL OL0162390RA 400 450 550 100 54 25 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
Supporto a muro completo con
scarico condensa.
Complete intermediate wall support
with condensation discharge.
A
D 1 H H tot
D u E OLI ex D.P. inox 25 rame 25
2
B
D
25 40 C
10
Cod.
Cod. inox D D A B C D E H H S
rame/copper 1 2 tot u
OL0162441 OL0162441RA 80 130 50 220 220 242 220 120 70 25 1
OL0162442 OL0162442RA 100 150 50 250 250 272 250 120 70 25 1
OL0162443 OL0162443RA 130 180 50 280 280 302 280 120 70 25 1
OL0162444 OL0162444RA 150 200 50 280 280 302 280 120 70 25 1
OL0162445 OL0162445RA 180 230 50 330 330 352 330 120 70 25 1
OL0162446 OL0162446RA 200 250 50 330 330 352 330 120 70 25 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
www.oli-world.com 155
