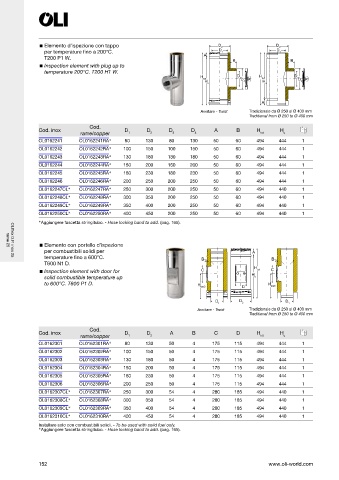

Page 154 - OLI - OLIFLEX
P. 154
Elemento d’ispezione con tappo D 2 D 2
per temperature no a 200°C. D 1 D 1
T200 P1 W. A B B
Inspection element with plug up to
temperature 200°C. T200 H1 W.
H D 3 H tot D 3
tot D D
H u 4 H u 4
A
Avvitare - Twist Tradizionale da Ø 250 al Ø 400 mm
Traditional from Ø 250 to Ø 400 mm
Cod.
Cod. inox D D D D A B H H
rame/copper 1 2 3 4 tot u
OL0162241 OL0162241RA 80 130 80 130 50 60 494 444 1
OL0162242 OL0162242RA 100 150 100 150 50 60 494 444 1
OL0162243 OL0162243RA 130 180 130 180 50 60 494 444 1
OL0162244 OL0162244RA 150 200 150 200 50 60 494 444 1
OL0162245 OL0162245RA 180 230 180 230 50 60 494 444 1
OL0162246 OL0162246RA 200 250 200 250 50 60 494 444 1
OL0162247CL OL0162247RA 250 300 200 250 50 60 494 440 1
OL0162248CL OL0162248RA 300 350 200 250 50 60 494 440 1
OL0162249CL OL0162249RA 350 400 200 250 50 60 494 440 1
OL0162250CL OL0162250RA 400 450 200 250 50 60 494 440 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
Elemento con portello d’ispezione
rame 25
per combustibili solidi per A
temperature no a 600°C. B B
OLI ex D.P. inox 25
T600 N1 D.
H
Inspection element with door for C tot C
solid combustible temperature up H u
to 600°C. T600 P1 D. H tot/2 D H tot/2
D 1 D 2 D 1
Avvitare - Twist Tradizionale da Ø 250 al Ø 400 mm
Traditional from Ø 250 to Ø 400 mm
Cod.
Cod. inox D D A B C D H H
rame/copper 1 2 tot u
OL0162301 OL0162301RA 80 130 50 4 175 115 494 444 1
OL0162302 OL0162302RA 100 150 50 4 175 115 494 444 1
OL0162303 OL0162303RA 130 180 50 4 175 115 494 444 1
OL0162304 OL0162304RA 150 200 50 4 175 115 494 444 1
OL0162305 OL0162305RA 180 230 50 4 175 115 494 444 1
OL0162306 OL0162306RA 200 250 50 4 175 115 494 444 1
OL0162307CL OL0162307RA 250 300 54 4 280 185 494 440 1
OL0162308CL OL0162308RA 300 350 54 4 280 185 494 440 1
OL0162309CL OL0162309RA 350 400 54 4 280 185 494 440 1
OL0162310CL OL0162310RA 400 450 54 4 280 185 494 440 1
Installare solo con combustibili solidi. - To be used with solid fuel only.
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 165).
