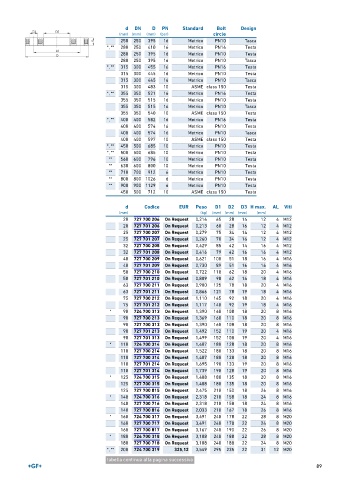

Page 89 - GEORGFISCHER - LISTINO 899

d DN D PN Standard Bolt Design
(mm) (mm) (mm) (bar) circle
250 250 395 16 Metrico PN10 Tasca
*, ** 280 250 410 16 Metrico PN16 Testa
280 250 395 16 Metrico PN10 Testa
280 250 395 16 Metrico PN10 Tasca
*, ** 315 300 455 16 Metrico PN16 Testa
315 300 445 16 Metrico PN10 Testa
315 300 445 16 Metrico PN10 Tasca
315 300 483 10 ASME class 150 Testa
*, ** 355 350 521 16 Metrico PN16 Testa
355 350 515 16 Metrico PN10 Testa
355 350 515 16 Metrico PN10 Tasca
355 350 540 10 ASME class 150 Testa
*, ** 400 400 582 16 Metrico PN16 Testa
400 400 574 16 Metrico PN10 Testa
400 400 574 16 Metrico PN10 Tasca
400 400 597 10 ASME class 150 Testa
*, ** 450 500 685 10 Metrico PN10 Testa
*, ** 500 500 685 10 Metrico PN10 Testa
** 560 600 796 10 Metrico PN10 Testa
** 630 600 800 10 Metrico PN10 Testa
** 710 700 912 6 Metrico PN10 Testa
** 800 800 1026 6 Metrico PN10 Testa
** 900 900 1129 6 Metrico PN10 Testa
450 500 712 10 ASME class 150 Testa

d Codice EUR Peso D1 D2 D3 H max. AL Viti
(mm) (kg) (mm) (mm) (mm) (mm)
20 727 700 206 On Request 0,216 65 28 14 12 4 M12
20 727 701 206 On Request 0,213 60 28 16 12 4 M12
25 727 700 207 On Request 0,279 75 34 14 12 4 M12
25 727 701 207 On Request 0,260 70 34 16 12 4 M12
32 727 700 208 On Request 0,429 85 42 14 16 4 M12
32 727 701 208 On Request 0,416 79 42 16 16 4 M12
40 727 700 209 On Request 0,621 100 51 18 16 4 M16
40 727 701 209 On Request 0,730 89 51 16 16 4 M16
50 727 700 210 On Request 0,722 110 62 18 20 4 M16
50 727 701 210 On Request 0,809 98 62 16 18 4 M16
63 727 700 211 On Request 0,900 125 78 18 20 4 M16
63 727 701 211 On Request 0,866 121 78 19 18 4 M16
75 727 700 212 On Request 1,110 145 92 18 20 4 M16
75 727 701 212 On Request 1,117 140 92 19 18 4 M16
* 90 724 700 313 On Request 1,390 160 108 18 20 8 M16
90 727 700 213 On Request 1,369 160 110 18 20 8 M16
90 727 700 313 On Request 1,390 160 108 18 20 8 M16
90 727 701 213 On Request 1,492 152 110 19 20 4 M16
90 727 701 313 On Request 1,499 152 108 19 20 4 M16
* 110 724 700 314 On Request 1,407 180 128 18 20 8 M16
110 727 700 214 On Request 1,522 180 133 18 20 8 M16
110 727 700 314 On Request 1,407 180 128 18 20 8 M16
110 727 701 214 On Request 1,695 190 133 19 20 8 M16
110 727 701 314 On Request 1,739 190 128 19 20 8 M16
* 125 724 700 315 On Request 1,408 180 135 18 20 8 M16
125 727 700 315 On Request 1,408 180 135 18 20 8 M16
125 727 700 815 On Request 2,475 210 150 18 26 8 M16
* 140 724 700 316 On Request 2,318 210 158 18 24 8 M16
140 727 700 716 On Request 2,318 210 158 18 24 8 M16
140 727 700 816 On Request 2,033 210 167 18 26 8 M16
* 160 724 700 317 On Request 3,491 240 178 22 28 8 M20
160 727 700 717 On Request 3,491 240 178 22 24 8 M20
160 727 700 817 On Request 3,167 240 190 22 26 8 M20
* 180 724 700 318 On Request 3,108 240 188 22 28 8 M20
180 727 700 718 On Request 3,108 240 188 22 24 8 M20
*, ** 200 724 700 319 325,12 3,549 295 235 22 31 12 M20
tabella continua alla pagina successiva
89
