Page 70 - FUJITSU - SPLIT-MULTISPLIT

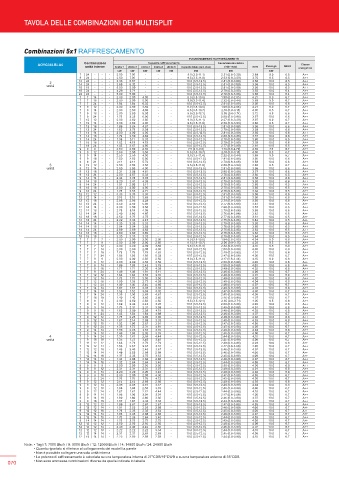

TAVOLA DELLE COMBINAZIONI DEI MULTISPLIT

Combinazioni 5x1 RAFFRESCAMENTO
FUNZIONAMENTO RAFFRESCAMENTO
AOYG36LBLA5 Combinazioni Unità 1 Unità 2 Unità 3 Capacità raffrescamento Capacità totale (min-max) Assorbimento totale EER Pdesign SEER energetica
Classe
unità interne
Unità 4
Unità 5
(min-max)
kW kW kW kW kW kW kW kW
7 24 - - - 2.00 7.00 - - - 9.0 (3.5-11.1) 2.31 (0.8-3.29) 3.89 9.0 6.5 A++
9 24 - - - 2.50 7.00 - - - 9.5 (3.5-11.8) 2.53 (0.8-3.59) 3.75 9.5 6.5 A++
2 12 24 - - - 3.33 6.67 - - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.5 A++
unità 14 24 - - - - - - 3.68 6.32 - - - - - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.5 A++
10.0 (3.5-12.5)
18
5.00
5.00
3.56
2.81 (0.8-3.88)
18
A++
6.5
10.0
18 24 - - - 4.29 5.71 - - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.58 10.0 6.4 A++
24 24 - - - 5.00 5.00 - - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.4 A++
7 7 14 - - 2.00 2.00 4.00 - - 8.0 (3.5-10.0) 1.90 (0.8-2.85) 4.21 8.0 6.7 A++
7 7 18 - - 2.00 2.00 5.00 - - 9.0 (3.5-11.4) 2.32 (0.8-3.44) 3.88 9.0 6.7 A++
7 7 24 - - 1.84 1.84 6.32 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
7 9 12 - - 2.00 2.50 3.50 - - 8.0 (3.5-10.0) 1.90 (0.8-2.85) 4.21 8.0 6.7 A++
7 9 14 - - 2.00 2.50 4.00 - - 8.5 (3.5-10.7) 2.10 (0.8-3.15) 4.05 8.5 6.7 A++
7 9 18 - - 2.00 2.50 5.00 - - 9.5 (3.5-12.1) 2.55 (0.8-3.74) 3.72 9.5 6.6 A++
7 9 24 - - 1.75 2.25 6.00 - - 10.0 (3.5-12.5) 2.80 (0.8-3.88) 3.57 10.0 6.6 A++
7 12 12 - - 2.00 3.50 3.50 - - 9.0 (3.5-11.1) 2.27 (0.8-3.29) 3.97 9.0 6.7 A++
7 12 14 - - 2.00 3.50 4.00 - - 9.5 (3.5-11.8) 2.50 (0.8-3.59) 3.80 9.5 6.7 A++
7 12 18 - - 1.89 3.24 4.87 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
7 12 24 - - 1.63 2.79 5.58 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.59 10.0 6.6 A++
7 14 14 - - 2.00 4.00 4.00 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
7 14 18 - - 1.79 3.59 4.62 - - 10.0 (3.5-12.5) 2.80 (0.8-3.88) 3.57 10.0 6.6 A++
7 14 24 - - 1.56 3.11 5.33 - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.5 A++
7 18 18 - - 1.62 4.19 4.19 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.59 10.0 6.6 A++
7 18 24 - - 1.43 3.67 4.90 - - 10.0 (3.5-12.5) 2.77 (0.8-3.88) 3.61 10.0 6.5 A++
9 9 9 - - 2.50 2.50 2.50 - - 7.5 (3.5-9.6) 1.74 (0.8-2.70) 4.30 7.5 6.7 A++
9 9 12 - - 2.50 2.50 3.50 - - 8.5 (3.5-10.7) 2.10 (0.8-3.15) 4.05 8.5 6.7 A++
9 9 14 - - 2.50 2.50 4.00 - - 9.0 (3.5-11.4) 2.32 (0.8-3.44) 3.88 9.0 6.7 A++
9 9 18 - - 2.50 2.50 5.00 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
9 9 24 - - 2.14 2.14 5.72 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.58 10.0 6.6 A++
3 9 12 12 - - 2.50 3.50 3.50 - - 9.5 (3.5-11.8) 2.50 (0.8-3.59) 3.80 9.5 6.7 A++
unità 9 12 14 - - 2.50 3.50 4.00 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
9 12 18 - - 2.31 3.08 4.61 - - 10.0 (3.5-12.5) 2.80 (0.8-3.88) 3.57 10.0 6.6 A++
9 12 24 - - 2.00 2.67 5.33 - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.5 A++
9 14 14 - - 2.44 3.78 3.78 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
9 14 18 - - 2.20 3.41 4.39 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.58 10.0 6.6 A++
9 14 24 - - 1.91 2.98 5.11 - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.5 A++
9 18 18 - - 2.00 4.00 4.00 - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.5 A++
9 18 24 - - 1.76 3.53 4.71 - - 10.0 (3.5-12.5) 2.76 (0.8-3.88) 3.62 10.0 6.5 A++
12 12 12 - - 3.33 3.33 3.33 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
12 12 14 - - 3.16 3.16 3.68 - - 10.0 (3.5-12.5) 2.81 (0.8-3.88) 3.56 10.0 6.6 A++
12 12 18 - - 2.86 2.86 4.28 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.58 10.0 6.6 A++
12 12 24 - - 2.50 2.50 5.00 - - 10.0 (3.5-12.5) 2.77 (0.8-3.88) 3.61 10.0 6.5 A++
12 14 14 - - 3.00 3.50 3.50 - - 10.0 (3.5-12.5) 2.80 (0.8-3.88) 3.57 10.0 6.6 A++
12 14 18 - - 2.73 3.18 4.09 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.59 10.0 6.6 A++
12 14 24 - - 2.40 2.80 4.80 - - 10.0 (3.5-12.5) 2.76 (0.8-3.88) 3.62 10.0 6.5 A++
12 18 18 - - 2.50 3.75 3.75 - - 10.0 (3.5-12.5) 2.77 (0.8-3.88) 3.61 10.0 6.5 A++
12 18 24 - - 2.22 3.33 4.45 - - 10.0 (3.5-12.5) 2.75 (0.8-3.88) 3.64 10.0 6.5 A++
14 14 14 - - 3.33 3.33 3.33 - - 10.0 (3.5-12.5) 2.79 (0.8-3.88) 3.58 10.0 6.6 A++
14 14 18 - - 3.04 3.04 3.92 - - 10.0 (3.5-12.5) 2.78 (0.8-3.88) 3.60 10.0 6.5 A++
14 14 24 - - 2.69 2.69 4.62 - - 10.0 (3.5-12.5) 2.75 (0.8-3.88) 3.63 10.0 6.5 A++
14 18 18 - - 2.80 3.60 3.60 - - 10.0 (3.5-12.5) 2.76 (0.8-3.88) 3.62 10.0 6.5 A++
18 18 18 - - 3.33 3.33 3.33 - - 10.0 (3.5-12.5) 2.75 (0.8-3.88) 3.64 10.0 6.5 A++
7 7 7 7 - 2.00 2.00 2.00 2.00 - 8.0 (3.5-10.0) 1.84 (0.8-2.85) 4.34 8.0 6.8 A++
7 7 7 9 - 2.00 2.00 2.00 2.50 - 8.5 (3.5-10.7) 2.00 (0.8-3.15) 4.25 8.5 6.8 A++
7 7 7 12 - 2.00 2.00 2.00 3.50 - 9.5 (3.5-11.8) 2.32 (0.8-3.59) 4.10 9.5 6.8 A++
7 7 7 14 - 2.00 2.00 2.00 4.00 - 10.0 (3.5-12.5) 2.50 (0.8-3.88) 4.00 10.0 6.8 A++
7 7 7 18 - 1.79 1.79 1.79 4.63 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.01 10.0 6.8 A++
7 7 7 24 - 1.56 1.56 1.56 5.32 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
7 7 9 9 - 2.00 2.00 2.50 2.50 - 9.0 (3.5-11.4) 2.17 (0.8-3.44) 4.15 9.0 6.8 A++
7 7 9 12 - 2.00 2.00 2.50 3.50 - 10.0 (3.5-12.5) 2.50 (0.8-3.88) 4.00 10.0 6.8 A++
7 7 9 14 - 1.89 1.89 2.43 3.79 - 10.0 (3.5-12.5) 2.50 (0.8-3.88) 4.00 10.0 6.8 A++
7 7 9 18 - 1.71 1.71 2.20 4.38 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.02 10.0 6.8 A++
7 7 9 24 - 1.49 1.49 1.91 5.11 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
7 7 12 12 - 1.84 1.84 3.16 3.16 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.01 10.0 6.8 A++
7 7 12 14 - 1.75 1.75 3.00 3.50 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.02 10.0 6.8 A++
7 7 12 18 - 1.59 1.59 2.73 4.09 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.04 10.0 6.8 A++
7 7 12 24 - 1.40 1.40 2.40 4.80 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
7 7 14 14 - 1.67 1.67 3.33 3.33 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.03 10.0 6.8 A++
7 7 14 18 - 1.52 1.52 3.04 3.92 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
7 7 14 24 - 1.35 1.35 2.69 4.61 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
7 7 18 18 - 1.40 1.40 3.60 3.60 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
7 9 9 9 - 2.00 2.50 2.50 2.50 - 9.5 (3.5-12.1) 2.35 (0.8-3.74) 4.05 9.5 6.8 A++
7 9 9 12 - 1.89 2.43 2.43 3.25 - 10.0 (3.5-12.5) 2.50 (0.8-3.88) 4.00 10.0 6.8 A++
7 9 9 14 - 1.79 2.31 2.31 3.59 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.01 10.0 6.8 A++
7 9 9 18 - 1.63 2.09 2.09 4.19 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.03 10.0 6.8 A++
7 9 9 24 - 1.43 1.84 1.84 4.89 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
7 9 12 12 - 1.75 2.25 3.00 3.00 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.02 10.0 6.8 A++
7 9 12 14 - 1.67 2.14 2.86 3.33 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.03 10.0 6.8 A++
7 9 12 18 - 1.52 1.96 2.61 3.91 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
7 9 12 24 - 1.35 1.73 2.31 4.61 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
7 9 14 14 - 1.59 2.05 3.18 3.18 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.04 10.0 6.8 A++
7 9 14 18 - 1.46 1.88 2.92 3.74 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
4 7 9 14 24 - 1.30 1.67 2.59 4.44 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 6.7 A++
unità 7 9 18 18 - 1.35 1.73 3.46 3.46 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
7 12 12 12 - 1.63 2.79 2.79 2.79 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.03 10.0 6.8 A++
7 12 12 14 - 1.56 2.67 2.67 3.10 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
7 12 12 18 - 1.43 2.45 2.45 3.67 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
7 12 14 14 - 1.49 2.55 2.98 2.98 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
7 12 14 18 - 1.37 2.35 2.75 3.53 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
7 14 14 14 - 1.42 2.86 2.86 2.86 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
7 14 14 18 - 1.32 2.64 2.64 3.40 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.09 10.0 6.7 A++
9 9 9 9 - 2.50 2.50 2.50 2.50 - 10.0 (3.5-12.5) 2.50 (0.8-3.88) 4.00 10.0 6.8 A++
9 9 9 12 - 2.31 2.31 2.31 3.07 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.01 10.0 6.8 A++
9 9 9 14 - 2.20 2.20 2.20 3.40 - 10.0 (3.5-12.5) 2.49 (0.8-3.88) 4.02 10.0 6.8 A++
9 9 9 18 - 2.00 2.00 2.00 4.00 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
9 9 9 24 - 1.76 1.76 1.76 4.72 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
9 9 12 12 - 2.14 2.14 2.86 2.86 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.03 10.0 6.8 A++
9 9 12 14 - 2.05 2.05 2.73 3.17 - 10.0 (3.5-12.5) 2.48 (0.8-3.88) 4.04 10.0 6.8 A++
9 9 12 18 - 1.88 1.88 2.50 3.74 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
9 9 12 24 - 1.67 1.67 2.22 4.44 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 6.7 A++
9 9 14 14 - 1.96 1.96 3.04 3.04 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
9 9 14 18 - 1.80 1.80 2.80 3.60 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
9 9 18 18 - 1.67 1.67 3.33 3.33 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 6.7 A++
9 12 12 12 - 1.99 2.67 2.67 2.67 - 10.0 (3.5-12.5) 2.47 (0.8-3.88) 4.05 10.0 6.7 A++
9 12 12 14 - 1.91 2.55 2.55 2.99 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
9 12 12 18 - 1.76 2.35 2.35 3.54 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
9 12 14 14 - 1.83 2.45 2.86 2.86 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
9 12 14 18 - 1.70 2.26 2.64 3.40 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.09 10.0 6.7 A++
9 14 14 14 - 1.75 2.75 2.75 2.75 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
12 12 12 12 - 2.50 2.50 2.50 2.50 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.06 10.0 6.7 A++
12 12 12 14 - 2.40 2.40 2.40 2.80 - 10.0 (3.5-12.5) 2.46 (0.8-3.88) 4.07 10.0 6.7 A++
12 12 12 18 - 2.22 2.22 2.22 3.34 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 6.7 A++
12 12 14 14 - 2.31 2.31 2.69 2.69 - 10.0 (3.5-12.5) 2.45 (0.8-3.88) 4.08 10.0 6.7 A++
12 14 14 14 - 2.23 2.59 2.59 2.59 - 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 6.7 A++
Note: • Tagli 7: 7000 Btu/h / 9: 9000 Btu/h / 12: 12000 Btu/h / 14: 14000 Btu/h / 24: 24000 Btu/h
• Quanto riportato si riferisce al collegamento dei modelli a parete
• Non è possibile collegare una sola unità interna
• La potenza di raffrescamento è calcolata su una temperatura interna di 27°CDB/19°CWB e su una temperatura esterna di 35°CDB
070 • Non sono ammesse combinazioni diverse da quelle indicate in tabella
