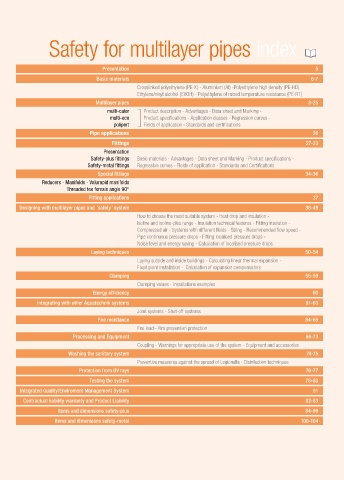

Safety for multilayer pipes index
Presentation 5
Basic materials 6-7
Crosslinked polyethylene (PE-X) - Aluminium (Al) -Polyethylene high density (PE-HD)
Ethylene/vinyl alcohol (EVOH) - Polyethylene of raised temperature resistance (PE-RT)
Multilayer pipes 8-25
multi-calor Product description - Advantages - Data sheet and Marking -
multi-eco Product specifications - Application classes - Regression curves -
polipert Fields of application - Standards and certifications
Pipe applications 26
Fittings 27-33
Presentation
Safety-plus fittings Basic materials - Advantages - Data sheet and Marking - Product specifications -
Safety-metal fittings Regression curves - Fields of application - Standards and Certifications
Special fittings 34-36
Reducers - Manifolds - Valurapid manifolds
Threaded tee female angle 90°
Fitting applications 37
Designing with multilayer pipes and “safety” system 38-49
How to choose the most suitable system - Heat drop and insulation -
Isoline and isoline-plus range - Insulation technical features - Fitting insulation -
Compressed air - Systems with different fluids - Sizing - Recommended flow speed -
Pipe continuous pressure drops - Fitting localised pressure drops -
Noise level and energy saving - Calculation of localised pressure drops
Laying techniques 50-54
Laying outside and inside buildings - Calculating linear thermal expansion -
Fixed point installation - Calculation of expansion compensators
Clamping 55-59
Clamping values - Installations examples
Energy efficiency 60
Integrating with other Aquatechnik systems 61-63
Joint systems - Shut-off systems
Fire resistance 64-65
Fire load - Fire prevention protection
Processing and Equipment 66-73
Coupling - Warnings for appropriate use of the system - Equipment and accessories
Washing the sanitary system 74-75
Preventive measures against the spread of Legionella - Disinfection techniques
Protection from UV rays 76-77
Testing the system 78-80
Integrated Quality/Enviroment Management System 81
Contractual liability warranty and Product Liability 82-83
Items and dimensions safety-plus 84-99
Items and dimensions safety-metal 100-104
4 5
