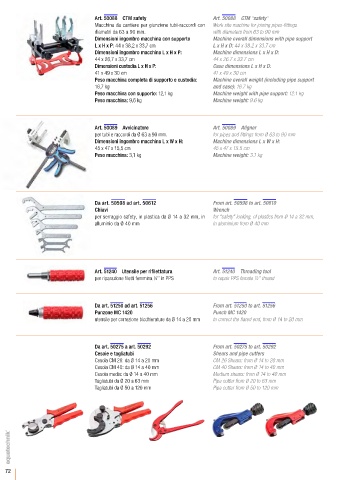

Page 74 - AQUATECHNIK - SAFETY
P. 74
Art. 50088 CTM safety Art. 50088 CTM “safety”
Macchina da cantiere per giunzione tubi-raccordi con Work site machine for joining pipes-fittings
diametri da 63 a 90 mm. with diameters from 63 to 90 mm
Dimensioni ingombro macchina con supporto Machine overall dimensions with pipe support
L x H x P: 44 x 38,2 x 33,7 cm L x H x D: 44 x 38.2 x 33.7 cm
Dimensioni ingombro macchina L x H x P: Machine dimensions L x H x D:
44 x 26,7 x 33,7 cm 44 x 26.7 x 33.7 cm
Dimensioni custodia L x H x P: Case dimensions L x H x D:
41 x 49 x 30 cm 41 x 49 x 30 cm
Peso macchina completa di supporto e custodia: Machine overall weight (including pipe support
16,7 kg and case): 16.7 kg
Peso macchina con supporto: 12,1 kg Machine weight with pipe support: 12.1 kg
Peso macchina: 9,6 kg Machine weight: 9.6 kg
Art. 50089 Avvicinatore Art. 50089 Aligner
per tubi e raccordi da Ø 63 a 90 mm. for pipes and fittings from Ø 63 to 90 mm
Dimensioni ingombro macchina L x W x H: Machine dimensions L x W x H:
45 x 47 x 15,5 cm 45 x 47 x 15.5 cm
Peso macchina: 3,1 kg Machine weight: 3.1 kg
Da art. 50598 ad art. 50612 From art. 50598 to art. 50610
Chiavi Wrench
per serraggio safety, in plastica da Ø 14 a 32 mm, in for “safety” locking, of plastics from Ø 14 a 32 mm,
alluminio da Ø 40 mm in aluminium from Ø 40 mm
Art. 51240 Utensile per rifilettatura Art. 51240 Threading tool
per riparazione filetti femmina ½’’ in PPS to repair PPS female ½’’ thread
Da art. 51250 ad art. 51256 From art. 51250 to art. 51256
Punzone MC 1420 Punch MC 1420
utensile per correzione bicchierature da Ø 14 a 20 mm to correct the flared end, from Ø 14 to 20 mm
Da art. 50275 a art. 50292 From art. 50275 to art. 50292
Cesoie e tagliatubi Shears and pipe cutters
Cesoia CM 26: da Ø 14 a 20 mm CM 26 Shears: from Ø 14 to 20 mm
Cesoia CM 40: da Ø 14 a 40 mm CM 40 Shears: from Ø 14 to 40 mm
Cesoia media: da Ø 14 a 40 mm Medium shears: from Ø 14 to 40 mm
Tagliatubi da Ø 20 a 63 mm Pipe cutter from Ø 20 to 63 mm
Tagliatubi da Ø 50 a 120 mm Pipe cutter from Ø 50 to 120 mm
