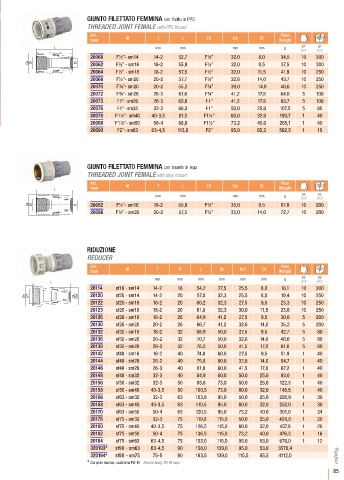

Page 87 - AQUATECHNIK - SAFETY

GIUNTO FILETTATO FEMMINA con filetto in PPS
THREADED JOINT FEMALE with PPS thread
Art. Peso
Item M T L Df De Di Weight
pz pz
L mm mm mm mm g pcs pcs
20060 F½”- sm14 14-2 52,7 F½” 32,0 8,0 34,5 10 300
De Df Di 20062 F½” - sm16 16-2 55,9 F½” 32,0 9,5 37,5 10 300
20064 F½” - sm18 18-2 57,5 F½” 32,0 11,5 41,9 10 250
20066 F½”- sm20 20-2 57,7 F½” 32,6 14,0 43,7 10 250
20070 F¾”- sm20 20-2 55,2 F¾” 39,0 14,0 46,6 10 250
20072 F¾”- sm26 26-3 61,6 F¾” 41,2 17,8 64,0 5 100
20073 F1”- sm26 26-3 65,6 F1” 41,2 17,8 83,7 5 100
20076 F1”- sm32 32-3 68,3 F1” 50,0 25,0 107,5 5 80
20078 F1¼”- sm40 40-3,5 81,5 F1¼” 60,0 32,0 190,7 1 40
20088 F1½”- sm50 50-4 88,0 F1½” 73,2 40,0 265,1 1 40
20093 F2”- sm63 63-4,5 113,0 F2” 95,0 65,2 562,5 1 15

GIUNTO FILETTATO FEMMINA con inserto in lega
THREADED JOINT FEMALE with alloy thread
Art. M T L Df De Di Peso
L Item Weight
pz pz
mm mm mm mm g pcs pcs
De Df Di 20082 F½”- sm16 16-2 55,9 F½” 35,0 9,5 67,0 10 200
20086 F½” - sm20 20-2 57,5 F½” 35,0 14,0 72,7 10 200

RIDUZIONE
REDUCER
Art. Peso
Item M T R L De De1 Di Weight
mm mm mm mm mm mm g pz pz
L pcs pcs
20114 sf16 - sm14 14-2 16 54,2 27,5 25,5 8,0 18,1 10 300
De Df1 Di De1 20120 sf20 - sm14 14-2 20 57,0 32,3 25,5 8,0 19,4 10 250
20122 sf20 - sm16 16-2 20 60,2 32,3 27,5 9,5 23,3 10 250
20123 sf20 - sm18 18-2 20 61,8 32,3 30,0 11,5 23,6 10 250
20126 sf26 - sm16 16-2 26 64,9 41,2 27,5 9,5 30,6 5 200
20130 sf26 - sm20 20-2 26 66,7 41,2 32,6 14,0 35,2 5 200
20132 sf32 - sm16 16-2 32 68,9 50,0 27,5 9,5 42,7 5 80
20136 sf32 - sm20 20-2 32 70,7 50,0 32,6 14,0 46,6 5 80
20138 sf32 - sm26 26-3 32 76,0 50,0 41,5 17,8 61,6 5 80
20142 sf40 - sm16 16-2 40 74,0 60,0 27,5 9,5 51,9 1 40
20144 sf40 - sm20 20-2 40 75,8 60,0 32,6 14,0 54,7 1 40
20146 sf40 - sm26 26-3 40 81,0 60,0 41,5 17,8 67,2 1 40
20148 sf40 - sm32 32-3 40 84,9 60,0 50,0 25,0 93,0 1 40
20156 sf50 - sm32 32-3 50 93,8 73,0 50,0 25,0 122,3 1 40
20158 sf50 - sm40 40-3,5 50 100,5 73,0 60,0 32,0 148,5 1 40
20166 sf63 - sm32 32-3 63 103,8 95,0 50,0 25,0 220,9 1 30
20168 sf63 - sm40 40-3,5 63 110,5 95,0 60,0 32,0 252,0 1 30
20170 sf63 - sm50 50-4 63 120,5 95,0 73,2 40,0 301,0 1 24
20178 sf75 - sm32 32-3 75 119,8 115,0 50,0 25,0 435,8 1 20
20180 sf75 - sm40 40-3,5 75 126,5 115,0 60,0 32,0 457,9 1 20
20182 sf75 - sm50 50-4 75 136,5 115,0 73,2 40,0 476,3 1 16
20184 sf75 - sm63 63-4,5 75 153,0 115,0 95,0 53,0 670,0 1 12
320193* sf90 - sm63 63-4,5 90 158,0 139,0 95,0 53,0 3570,4
320194* sf90 - sm75 75-5 90 163,5 139,0 115,5 65,5 4112,0
* Corpo in bronzo, calotte in PA-M Bronze body, PA-M caps
