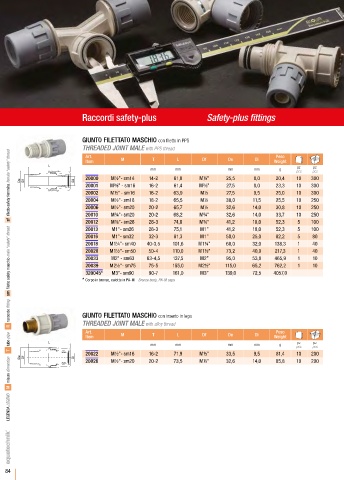

Page 86 - AQUATECHNIK - SAFETY

Raccordi safety-plus Safety-plus fittings

GIUNTO FILETTATO MASCHIO con filetto in PPS
THREADED JOINT MALE with PPS thread
LEGENDA LEGEND misure dimension tubo pipe raccordo fitting filetto safety maschio male “safety” thread filetto safety femmina female “safety” thread
Art. Peso
Item M T L Df De Di Weight
L pz pz
mm
mm
mm
g
mm

pcs pcs
20000 M½”- sm14 14-2 61,0 M½” 25,5 8,0 20,4 10 300
De Df Di
20001 M³/8” - sm16 16-2 61,4 M³/8” 27,5 8,0 23,3 10 300
20002 M½” - sm16 16-2 63,9 M½ 27,5 9,5 25,0 10 300
20004 M½”- sm18 18-2 65,5 M½ 30,0 11,5 25,5 10 250
20006 M½”- sm20 20-2 65,7 M½ 32,6 14,0 30,8 10 250
20010 M¾”- sm20 20-2 68,2 M¾” 32,6 14,0 33,7 10 250
sf 20012 M¾”- sm26 26-3 74,6 M¾” 41,2 18,0 52,3 5 100
20013 M1”- sm26 26-3 75,1 M1” 41,2 19,0 52,3 5 100
20016 M1”- sm32 32-3 81,3 M1” 50,0 25,0 82,2 5 80
20018 M1¼”- sm40 40-3,5 101,6 M1¼” 60,0 32,0 138,3 1 40
20028 M1½”- sm50 50-4 110,0 M1½” 73,2 40,0 217,3 1 40
20033 M2” - sm63 63-4,5 137,5 M2” 95,0 53,0 465,9 1 10
20039 M2½”- sm75 75-5 155,0 M2½” 115,0 65,2 762,2 1 10
320045* M3”- sm90 90-7 161,0 M3” 139,0 72,5 4057,0
* Corpo in bronzo, calotte in PA-M Bronze body, PA-M caps

sm

GIUNTO FILETTATO MASCHIO con inserto in lega
THREADED JOINT MALE with alloy thread
R
Art. Peso
Item M T L Df De Di Weight
L pz pz
mm mm mm mm g pcs pcs
T
20022 M½”- sm16 16-2 71,9 M½” 33,5 9,5 81,4 10 200
De Df Di
20026 M½”- sm20 20-2 73,5 M½” 32,6 14,0 85,8 10 200

M

84 85
