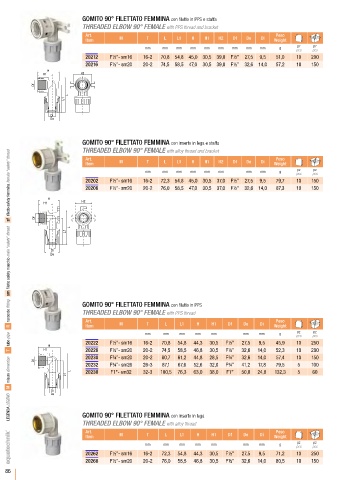

GOMITO 90° FILETTATO FEMMINA con filetto in PPS e staffa
THREADED ELBOW 90° FEMALE with PPS thread and bracket
Art. Peso
Item M T L L1 H H1 H2 Df De Di Weight
pz pz
mm mm mm mm mm mm mm mm mm g pcs pcs
20212 F½”- sm16 16-2 70,8 54,8 45,0 30,5 39,0 F½” 27,5 9,5 51,0 10 200
20216 F½”- sm20 20-2 74,5 58,5 47,0 30,5 39,0 F½” 32,6 14,0 57,2 10 150
H
H1 H2
Df
L
L1
Di
De
GOMITO 90° FILETTATO FEMMINA con inserto in lega e staffa
THREADED ELBOW 90° FEMALE with alloy thread and bracket
Art. Peso
Item M T L L1 H H1 H2 Df De Di Weight
mm mm mm mm mm mm mm mm g pz pz
pcs pcs
20202 F½”- sm16 16-2 72,3 54,8 45,0 30,5 37,0 F½” 27,5 9,5 79,7 10 150
20206 F½”- sm20 20-2 76,0 58,5 47,0 30,5 37,0 F½” 32,6 14,0 87,3 10 150
H
H1 H2
Df
sf
L
L1
Di
De
sm LEGENDA LEGEND misure dimension tubo pipe raccordo fitting filetto safety maschio male “safety” thread filetto safety femmina female “safety” thread
GOMITO 90° FILETTATO FEMMINA con filetto in PPS
THREADED ELBOW 90° FEMALE with PPS thread
Art. Peso
R Item M T L L1 H H1 Df De Di Weight
mm mm mm mm mm mm mm g pcs pcs
pz
pz
20222 F½”- sm16 16-2 70,8 54,8 44,3 30,5 F½” 27,5 9,5 45,9 10 250
H
T H1 20226 F½”- sm20 20-2 74,5 58,5 46,8 30,5 F½” 32,6 14,0 52,3 10 200
20230 F¾”- sm20 20-2 80,7 61,2 44,8 28,5 F¾” 32,6 14,0 57,4 10 150
Df
20232 F¾”- sm26 26-3 87,1 67,6 52,6 32,0 F¾” 41,2 17,8 79,5 5 100
L 20238 F1”- sm32 32-3 100,5 76,3 63,0 38,0 F1” 50,0 24,8 132,3 5 60
L1
M
Di
De
GOMITO 90° FILETTATO FEMMINA con inserto in lega
THREADED ELBOW 90° FEMALE with alloy thread
Art. Peso
Item M T L L1 H H1 Df De Di Weight
mm mm mm mm mm mm mm g pcs pcs
pz
pz
20262 F½”- sm16 16-2 72,3 54,8 44,3 30,5 F½” 27,5 9,5 71,2 10 250
20266 F½”- sm20 20-2 76,0 58,5 46,8 30,5 F½” 32,6 14,0 80,5 10 150
