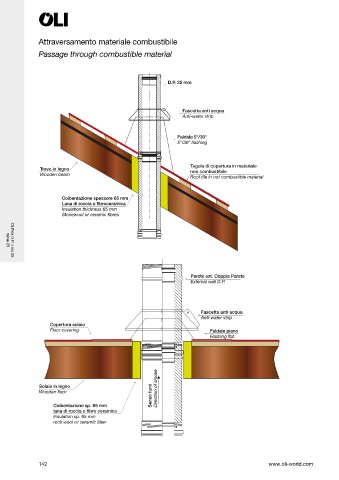

Attraversamento materiale combustibile
Passage through combustible material
D.P. 25 mm
Fascetta anti acqua
Anti-water strip
Faldale 5°/30°
5°/30° flashing
Tegola di copertura in materiale
Trave in legno non combustibile
Wooden beam Roof tile in not combustible material
Coibentazione spessore 65 mm
Lana di roccia o fibroceramica
Insulation thickness 65 mm
Stonewool or ceramic fibres
rame 25
OLI ex D.P. inox 25
Parete est. Doppia Parete
External wall D.P.
Fascetta anti acqua
Anti-water strip
Copertura solaio
Floor covering Faldale piano
Flashing flat
Solaio in legno
Wooden floor Senso fumi Direction of smoke
Coibentazione sp. 65 mm
lana di roccia o fibro ceramica
Insulation sp. 65 mm
rock wool or ceramic fiber
