Page 73 - FUJITSU - SPLIT-MULTISPLIT

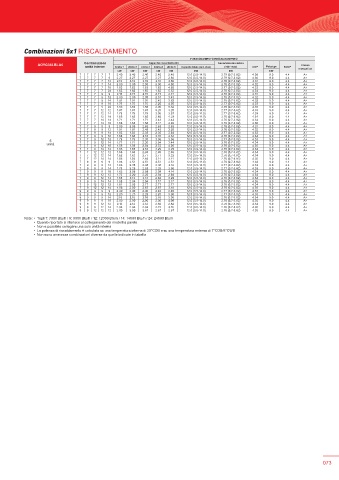

Combinazioni 5x1 RISCALDAMENTO
FUNZIONAMENTO RISCALDAMENTO
AOYG36LBLA5 Combinazioni Unità 1 Unità 2 Unità 3 Capacità riscaldamento Capacità totale (min-max) Assorbimento totale COP Pdesign SCOP Classe
unità interne
(min-max)
Unità 4
Unità 5
kW kW kW kW kW kW kW kW energetica
7 7 7 7 7 2.40 2.40 2.40 2.40 2.40 12.0 (3.5-14.0) 2.79 (0.7-3.82) 4.30 9.0 4.4 A+
7 7 7 7 9 2.27 2.27 2.27 2.27 2.92 12.0 (3.5-14.0) 2.79 (0.7-3.82) 4.30 9.0 4.4 A+
7 7 7 7 12 2.10 2.10 2.10 2.10 3.60 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.31 9.0 4.4 A+
7 7 7 7 14 2.00 2.00 2.00 2.00 4.00 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.32 9.0 4.4 A+
7 7 7 7 18 1.83 1.83 1.83 1.83 4.68 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 7 7 7 24 1.62 1.62 1.62 1.62 5.52 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 7 9 9 2.15 2.15 2.15 2.77 2.77 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.31 9.0 4.4 A+
7 7 7 9 12 2.00 2.00 2.00 2.57 3.43 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.32 9.0 4.4 A+
7 7 7 9 14 1.91 1.91 1.91 2.45 3.82 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.32 9.0 4.4 A+
7 7 7 9 18 1.75 1.75 1.75 2.25 4.50 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 7 7 9 24 1.56 1.56 1.56 2.00 5.32 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
7 7 7 12 12 1.87 1.87 1.87 3.20 3.20 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 7 7 12 14 1.79 1.79 1.79 3.06 3.57 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 7 7 12 18 1.65 1.65 1.65 2.82 4.23 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 7 14 14 1.71 1.71 1.71 3.43 3.43 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 7 14 18 1.58 1.58 1.58 3.17 4.09 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
7 7 9 9 9 2.05 2.05 2.63 2.63 2.63 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.31 9.0 4.4 A+
7 7 9 9 12 1.91 1.91 2.45 2.45 3.28 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.32 9.0 4.4 A+
7 7 9 9 14 1.83 1.83 2.35 2.35 3.64 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 7 9 9 18 1.68 1.68 2.16 2.16 4.32 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
5 7 7 9 12 12 1.79 1.79 2.30 3.06 3.06 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
unità 7 7 7 7 9 9 12 14 1.71 1.71 2.20 2.94 3.44 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
2.04
1.58
2.72
9.0
4.4
12
A+
1.58
18
12.0 (3.5-14.0)
2.76 (0.7-3.82)
4.35
4.08
7 7 9 14 14 1.65 1.65 2.12 3.29 3.29 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 12 12 12 1.68 1.68 2.88 2.88 2.88 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 12 12 14 1.62 1.62 2.77 2.77 3.22 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 7 12 14 14 1.56 1.56 2.66 3.11 3.11 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
7 9 9 9 9 1.96 2.51 2.51 2.51 2.51 12.0 (3.5-14.0) 2.78 (0.7-3.82) 4.32 9.0 4.4 A+
7 9 9 9 12 1.83 2.35 2.35 2.35 3.12 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 9 9 9 14 1.75 2.25 2.25 2.25 3.50 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
7 9 9 9 18 1.62 2.08 2.08 2.08 4.14 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 9 9 12 12 1.72 2.20 2.20 2.94 2.94 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 9 9 12 14 1.65 2.12 2.12 2.82 3.29 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 9 9 14 14 1.58 2.04 2.04 3.17 3.17 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
7 9 12 12 12 1.61 2.08 2.77 2.77 2.77 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
7 9 12 12 14 1.56 2.00 2.67 2.67 3.10 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
9 9 9 9 9 2.40 2.40 2.40 2.40 2.40 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
9 9 9 9 12 2.25 2.25 2.25 2.25 3.00 12.0 (3.5-14.0) 2.77 (0.7-3.82) 4.33 9.0 4.4 A+
9 9 9 9 14 2.16 2.16 2.16 2.16 3.36 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
9 9 9 9 18 2.00 2.00 2.00 2.00 4.00 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
9 9 9 12 12 2.12 2.12 2.12 2.82 2.82 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.34 9.0 4.4 A+
9 9 9 12 14 2.04 2.04 2.04 2.72 3.16 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
9 9 12 12 12 2.00 2.00 2.67 2.67 2.67 12.0 (3.5-14.0) 2.76 (0.7-3.82) 4.35 9.0 4.4 A+
Note: • Tagli 7: 7000 Btu/h / 9: 9000 Btu/h / 12: 12000 Btu/h / 14: 14000 Btu/h / 24: 24000 Btu/h
• Quanto riportato si riferisce al collegamento dei modelli a parete
• Non è possibile collegare una sola unità interna
• La potenza di riscaldamento è calcolata su una temperatura interna di 20°CDB e su una temperatura esterna di 7°CDB/6°CWB
• Non sono ammesse combinazioni diverse da quelle indicate in tabella

073
