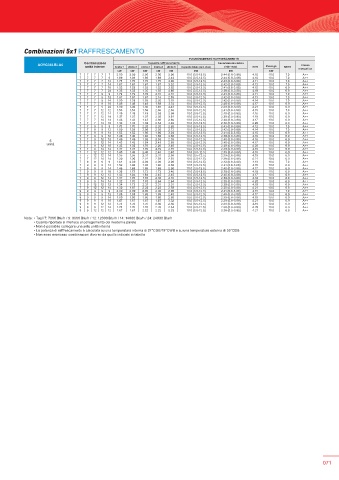

Page 71 - FUJITSU - SPLIT-MULTISPLIT

Combinazioni 5x1 RAFFRESCAMENTO
FUNZIONAMENTO RAFFRESCAMENTO
AOYG36LBLA5 Combinazioni Unità 1 Unità 2 Unità 3 Capacità raffrescamento Capacità totale (min-max) Assorbimento totale EER Pdesign SEER Classe
unità interne
(min-max)
Unità 4
Unità 5
kW kW kW kW kW kW kW kW energetica
7 7 7 7 7 2.00 2.00 2.00 2.00 2.00 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 7.0 A++
7 7 7 7 9 1.89 1.89 1.89 1.89 2.44 10.0 (3.5-12.5) 2.44 (0.8-3.88) 4.10 10.0 7.0 A++
7 7 7 7 12 1.75 1.75 1.75 1.75 3.00 10.0 (3.5-12.5) 2.43 (0.8-3.88) 4.11 10.0 7.0 A++
7 7 7 7 14 1.67 1.67 1.67 1.67 3.32 10.0 (3.5-12.5) 2.42 (0.8-3.88) 4.13 10.0 7.0 A++
7 7 7 7 18 1.52 1.52 1.52 1.52 3.92 10.0 (3.5-12.5) 2.41 (0.8-3.88) 4.15 10.0 6.9 A++
7 7 7 7 24 1.35 1.35 1.35 1.35 4.60 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 7 7 9 9 1.79 1.79 1.79 2.31 2.31 10.0 (3.5-12.5) 2.43 (0.8-3.88) 4.11 10.0 7.0 A++
7 7 7 9 12 1.67 1.67 1.67 2.14 2.85 10.0 (3.5-12.5) 2.42 (0.8-3.88) 4.13 10.0 7.0 A++
7 7 7 9 14 1.59 1.59 1.59 2.05 3.18 10.0 (3.5-12.5) 2.42 (0.8-3.88) 4.14 10.0 7.0 A++
7 7 7 9 18 1.46 1.46 1.46 1.88 3.74 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.17 10.0 6.9 A++
7 7 7 9 24 1.30 1.30 1.30 1.67 4.43 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.21 10.0 6.9 A++
7 7 7 12 12 1.56 1.56 1.56 2.66 2.66 10.0 (3.5-12.5) 2.41 (0.8-3.88) 4.15 10.0 7.0 A++
7 7 7 12 14 1.49 1.49 1.49 2.55 2.98 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.16 10.0 6.9 A++
7 7 7 12 18 1.37 1.37 1.37 2.35 3.54 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 7 7 14 14 1.43 1.43 1.43 2.86 2.86 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.17 10.0 6.9 A++
7 7 7 14 18 1.32 1.32 1.32 2.64 3.40 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.20 10.0 6.9 A++
7 7 9 9 9 1.70 1.70 2.20 2.20 2.20 10.0 (3.5-12.5) 2.43 (0.8-3.88) 4.12 10.0 7.0 A++
7 7 9 9 12 1.59 1.59 2.05 2.05 2.72 10.0 (3.5-12.5) 2.42 (0.8-3.88) 4.14 10.0 7.0 A++
7 7 9 9 14 1.52 1.52 1.96 1.96 3.04 10.0 (3.5-12.5) 2.41 (0.8-3.88) 4.15 10.0 6.9 A++
7 7 9 9 18 1.40 1.40 1.80 1.80 3.60 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.18 10.0 6.9 A++
5 7 7 9 12 12 1.49 1.49 1.92 2.55 2.55 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.16 10.0 6.9 A++
4.17
unità 7 7 7 7 9 9 12 14 1.43 1.43 1.84 2.45 2.85 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.20 10.0 6.9 A++
1.32
6.9
10.0
1.70
12
A++
1.32
18
2.26
10.0 (3.5-12.5)
2.38 (0.8-3.88)
3.40
7 7 9 14 14 1.37 1.37 1.76 2.75 2.75 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 7 12 12 12 1.40 1.40 2.40 2.40 2.40 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.18 10.0 6.9 A++
7 7 12 12 14 1.35 1.35 2.31 2.31 2.68 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 7 12 14 14 1.30 1.30 2.22 2.59 2.59 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.21 10.0 6.9 A++
7 9 9 9 9 1.64 2.09 2.09 2.09 2.09 10.0 (3.5-12.5) 2.42 (0.8-3.88) 4.13 10.0 7.0 A++
7 9 9 9 12 1.52 1.96 1.96 1.96 2.60 10.0 (3.5-12.5) 2.41 (0.8-3.88) 4.15 10.0 6.9 A++
7 9 9 9 14 1.46 1.88 1.88 1.88 2.90 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.17 10.0 6.9 A++
7 9 9 9 18 1.35 1.73 1.73 1.73 3.46 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 9 9 12 12 1.42 1.84 1.84 2.45 2.45 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.17 10.0 6.9 A++
7 9 9 12 14 1.37 1.76 1.76 2.35 2.76 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 9 9 14 14 1.32 1.70 1.70 2.64 2.64 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.20 10.0 6.9 A++
7 9 12 12 12 1.34 1.73 2.31 2.31 2.31 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
7 9 12 12 14 1.30 1.67 2.22 2.22 2.59 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.21 10.0 6.9 A++
9 9 9 9 9 2.00 2.00 2.00 2.00 2.00 10.0 (3.5-12.5) 2.41 (0.8-3.88) 4.15 10.0 7.0 A++
9 9 9 9 12 1.88 1.88 1.88 1.88 2.48 10.0 (3.5-12.5) 2.40 (0.8-3.88) 4.17 10.0 6.9 A++
9 9 9 9 14 1.80 1.80 1.80 1.80 2.80 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.18 10.0 6.9 A++
9 9 9 9 18 1.67 1.67 1.67 1.67 3.32 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.21 10.0 6.9 A++
9 9 9 12 12 1.76 1.76 1.76 2.36 2.36 10.0 (3.5-12.5) 2.39 (0.8-3.88) 4.19 10.0 6.9 A++
9 9 9 12 14 1.70 1.70 1.70 2.26 2.64 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.20 10.0 6.9 A++
9 9 12 12 12 1.67 1.67 2.22 2.22 2.22 10.0 (3.5-12.5) 2.38 (0.8-3.88) 4.21 10.0 6.9 A++
Note: • Tagli 7: 7000 Btu/h / 9: 9000 Btu/h / 12: 12000 Btu/h / 14: 14000 Btu/h / 24: 24000 Btu/h
• Quanto riportato si riferisce al collegamento dei modelli a parete
• Non è possibile collegare una sola unità interna
• La potenza di raffrescamento è calcolata su una temperatura interna di 27°CDB/19°CWB e su una temperatura esterna di 35°CDB
• Non sono ammesse combinazioni diverse da quelle indicate in tabella

071
