P. 72

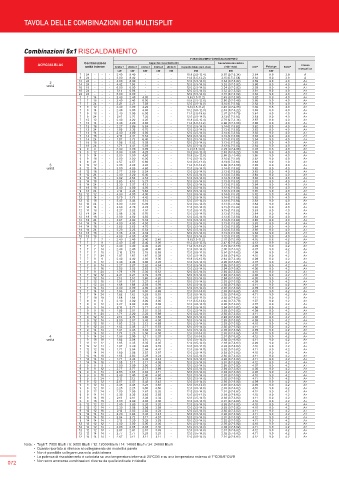

TAVOLA DELLE COMBINAZIONI DEI MULTISPLIT
Combinazioni 5x1 RISCALDAMENTO
FUNZIONAMENTO RISCALDAMENTO
AOYG36LBLA5 Combinazioni Unità 1 Unità 2 Unità 3 Capacità riscaldamento Capacità totale (min-max) Assorbimento totale COP Pdesign SCOP Classe
unità interne
(min-max)
Unità 5
Unità 4
kW kW kW kW kW kW kW kW energetica
7 24 - - - 2.40 8.40 - - - 10.8 (3.5-12.4) 2.97 (0.7-3.34) 3.64 8.9 3.9 A
9 24 - - - 3.00 8.40 - - - 11.4 (3.5-13.2) 3.15 (0.7-3.58) 3.62 9.0 3.9 A
2 12 24 - - - 4.00 8.00 - - - 12.0 (3.5-14.0) 3.34 (0.7-3.82) 3.59 9.0 4.0 A+
unità 14 24 - - - - - - 4.42 7.58 - - - - - - 12.0 (3.5-14.0) 3.33 (0.7-3.82) 3.60 9.0 4.0 A+
18
12.0 (3.5-14.0)
6.00
6.00
3.59
3.34 (0.7-3.82)
18
A+
4.0
9.0
18 24 - - - 5.14 6.86 - - - 12.0 (3.5-14.0) 3.32 (0.7-3.82) 3.61 9.0 4.0 A+
24 24 - - - 6.00 6.00 - - - 12.0 (3.5-14.0) 3.31 (0.7-3.82) 3.62 9.0 4.0 A+
7 7 14 - - 2.40 2.40 4.80 - - 9.6 (3.5-11.2) 2.45 (0.7-2.98) 3.92 8.8 4.0 A+
7 7 18 - - 2.40 2.40 6.00 - - 10.8 (3.5-12.8) 2.80 (0.7-3.46) 3.86 9.0 4.0 A+
7 7 24 - - 2.21 2.21 7.58 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
7 9 12 - - 2.40 3.00 4.20 - - 9.6 (3.5-11.2) 2.45 (0.7-2.98) 3.92 8.8 4.0 A+
7 9 14 - - 2.40 3.00 4.80 - - 10.2 (3.5-12.0) 2.63 (0.7-3.22) 3.88 8.9 4.0 A+
7 9 18 - - 2.40 3.00 6.00 - - 11.4 (3.5-13.6) 2.97 (0.7-3.70) 3.84 9.0 4.0 A+
7 9 24 - - 2.10 2.70 7.20 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
7 12 12 - - 2.40 4.20 4.20 - - 10.8 (3.5-12.4) 2.79 (0.7-3.34) 3.87 8.9 4.0 A+
7 12 14 - - 2.40 4.20 4.80 - - 11.4 (3.5-13.2) 2.96 (0.7-3.58) 3.85 9.0 4.0 A+
7 12 18 - - 2.27 3.89 5.84 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
7 12 24 - - 1.95 3.35 6.70 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
7 14 14 - - 2.40 4.80 4.80 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
7 14 18 - - 2.15 4.31 5.54 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
7 14 24 - - 1.87 3.73 6.40 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
7 18 18 - - 1.96 5.02 5.02 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
7 18 24 - - 1.71 4.41 5.88 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
9 9 9 - - 3.00 3.00 3.00 - - 9.0 (3.5-10.8) 2.29 (0.7-2.86) 3.93 8.8 4.0 A+
9 9 12 - - 3.00 3.00 4.20 - - 10.2 (3.5-12.0) 2.63 (0.7-3.22) 3.88 8.9 4.0 A+
9 9 14 - - 3.00 3.00 4.80 - - 10.8 (3.5-12.8) 2.80 (0.7-3.46) 3.86 9.0 4.0 A+
9 9 18 - - 3.00 3.00 6.00 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
9 9 24 - - 2.57 2.57 6.86 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
3 9 12 12 - - 3.00 4.20 4.20 - - 11.4 (3.5-13.2) 2.96 (0.7-3.58) 3.85 9.0 4.0 A+
unità 9 12 14 - - 3.00 4.20 4.80 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
9 12 18 - - 2.77 3.69 5.54 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
9 12 24 - - 2.40 3.20 6.40 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
9 14 14 - - 2.92 4.54 4.54 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
9 14 18 - - 2.63 4.10 5.27 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
9 14 24 - - 2.30 3.57 6.13 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
9 18 18 - - 2.40 4.80 4.80 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
9 18 24 - - 2.12 4.24 5.64 - - 12.0 (3.5-14.0) 3.12 (0.7-3.82) 3.85 9.0 4.0 A+
12 12 12 - - 4.00 4.00 4.00 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
12 12 14 - - 3.79 3.79 4.42 - - 12.0 (3.5-14.0) 3.14 (0.7-3.82) 3.82 9.0 4.0 A+
12 12 18 - - 3.43 3.43 5.14 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
12 12 24 - - 3.00 3.00 6.00 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
12 14 14 - - 3.60 4.20 4.20 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
12 14 18 - - 3.27 3.82 4.91 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
12 14 24 - - 2.88 3.36 5.76 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
12 18 18 - - 3.00 4.50 4.50 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
12 18 24 - - 2.67 4.00 5.33 - - 12.0 (3.5-14.0) 3.12 (0.7-3.82) 3.85 9.0 4.0 A+
14 14 14 - - 4.00 4.00 4.00 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.83 9.0 4.0 A+
14 14 18 - - 3.65 3.65 4.70 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
14 14 24 - - 3.23 3.23 5.54 - - 12.0 (3.5-14.0) 3.12 (0.7-3.82) 3.85 9.0 4.0 A+
14 18 18 - - 3.36 4.32 4.32 - - 12.0 (3.5-14.0) 3.13 (0.7-3.82) 3.84 9.0 4.0 A+
18 18 18 - - 4.00 4.00 4.00 - - 12.0 (3.5-14.0) 3.12 (0.7-3.82) 3.85 9.0 4.0 A+
7 7 7 7 - 2.40 2.40 2.40 2.40 - 9.6 (3.5-11.2) 2.31 (0.7-2.98) 4.16 8.8 4.2 A+
7 7 7 9 - 2.40 2.40 2.40 3.00 - 10.2 (3.5-12.0) 2.47 (0.7-3.22) 4.13 8.9 4.2 A+
7 7 7 12 - 2.40 2.40 2.40 4.20 - 11.4 (3.5-13.2) 2.79 (0.7-3.58) 4.09 9.0 4.2 A+
7 7 7 14 - 2.40 2.40 2.40 4.80 - 12.0 (3.5-14.0) 2.95 (0.7-3.82) 4.07 9.0 4.2 A+
7 7 7 18 - 2.15 2.15 2.15 5.55 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 7 7 24 - 1.87 1.87 1.87 6.39 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 7 9 9 - 2.40 2.40 3.00 3.00 - 10.8 (3.5-12.8) 2.64 (0.7-3.46) 4.09 9.0 4.2 A+
7 7 9 12 - 2.40 2.40 3.00 4.20 - 12.0 (3.5-14.0) 2.95 (0.7-3.82) 4.07 9.0 4.2 A+
7 7 9 14 - 2.27 2.27 2.92 4.54 - 12.0 (3.5-14.0) 2.95 (0.7-3.82) 4.07 9.0 4.2 A+
7 7 9 18 - 2.05 2.05 2.63 5.27 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 7 9 24 - 1.79 1.79 2.30 6.12 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 7 12 12 - 2.21 2.21 3.79 3.79 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 7 12 14 - 2.10 2.10 3.60 4.20 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 7 12 18 - 1.91 1.91 3.27 4.91 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 7 12 24 - 1.68 1.68 2.88 5.76 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 7 14 14 - 2.00 2.00 4.00 4.00 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 7 14 18 - 1.83 1.83 3.65 4.69 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 7 14 24 - 1.62 1.62 3.23 5.53 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 7 18 18 - 1.68 1.68 4.32 4.32 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 9 9 9 - 2.40 3.00 3.00 3.00 - 11.4 (3.5-13.6) 2.80 (0.7-3.70) 4.07 9.0 4.2 A+
7 9 9 12 - 2.27 2.92 2.92 3.89 - 12.0 (3.5-14.0) 2.95 (0.7-3.82) 4.07 9.0 4.2 A+
7 9 9 14 - 2.15 2.77 2.77 4.31 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 9 9 18 - 1.95 2.51 2.51 5.03 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 9 9 24 - 1.71 2.20 2.20 5.89 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 9 12 12 - 2.10 2.70 3.60 3.60 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
7 9 12 14 - 2.00 2.57 3.43 4.00 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 9 12 18 - 1.83 2.35 3.13 4.69 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 9 12 24 - 1.62 2.08 2.77 5.53 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 9 14 14 - 1.91 2.45 3.82 3.82 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 9 14 18 - 1.75 2.25 3.50 4.50 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
4 7 9 14 24 - 1.56 2.00 3.11 5.33 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
unità 7 9 18 18 - 1.62 2.08 4.15 4.15 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 12 12 12 - 1.95 3.35 3.35 3.35 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
7 12 12 14 - 1.87 3.20 3.20 3.73 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 12 12 18 - 1.71 2.94 2.94 4.41 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 12 14 14 - 1.80 3.06 3.57 3.57 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
7 12 14 18 - 1.65 2.82 3.29 4.24 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 14 14 14 - 1.71 3.43 3.43 3.43 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
7 14 14 18 - 1.58 3.17 3.17 4.08 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
9 9 9 9 - 3.00 3.00 3.00 3.00 - 12.0 (3.5-14.0) 2.95 (0.7-3.82) 4.07 9.0 4.2 A+
9 9 9 12 - 2.77 2.77 2.77 3.69 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
9 9 9 14 - 2.63 2.63 2.63 4.11 - 12.0 (3.5-14.0) 2.94 (0.7-3.82) 4.08 9.0 4.2 A+
9 9 9 18 - 2.40 2.40 2.40 4.80 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
9 9 9 24 - 2.12 2.12 2.12 5.64 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
9 9 12 12 - 2.57 2.57 3.43 3.43 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
9 9 12 14 - 2.45 2.45 3.27 3.83 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.09 9.0 4.2 A+
9 9 12 18 - 2.25 2.25 3.00 4.50 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
9 9 12 24 - 2.00 2.00 2.67 5.33 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
9 9 14 14 - 2.35 2.35 3.65 3.65 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
9 9 14 18 - 2.16 2.16 3.36 4.32 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
9 9 18 18 - 2.00 2.00 4.00 4.00 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
9 12 12 12 - 2.40 3.20 3.20 3.20 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
9 12 12 14 - 2.30 3.06 3.06 3.58 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
9 12 12 18 - 2.12 2.82 2.82 4.24 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
9 12 14 14 - 2.20 2.94 3.43 3.43 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
9 12 14 18 - 2.04 2.72 3.17 4.07 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
9 14 14 14 - 2.13 3.29 3.29 3.29 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
12 12 12 12 - 3.00 3.00 3.00 3.00 - 12.0 (3.5-14.0) 2.93 (0.7-3.82) 4.10 9.0 4.2 A+
12 12 12 14 - 2.88 2.88 2.88 3.36 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
12 12 12 18 - 2.67 2.67 2.67 3.99 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
12 12 14 14 - 2.77 2.77 3.23 3.23 - 12.0 (3.5-14.0) 2.92 (0.7-3.82) 4.11 9.0 4.2 A+
12 14 14 14 - 2.67 3.11 3.11 3.11 - 12.0 (3.5-14.0) 2.91 (0.7-3.82) 4.12 9.0 4.2 A+
Note: • Tagli 7: 7000 Btu/h / 9: 9000 Btu/h / 12: 12000 Btu/h / 14: 14000 Btu/h / 24: 24000 Btu/h
• Quanto riportato si riferisce al collegamento dei modelli a parete
• Non è possibile collegare una sola unità interna
• La potenza di riscaldamento è calcolata su una temperatura interna di 20°CDB e su una temperatura esterna di 7°CDB/6°CWB
072 • Non sono ammesse combinazioni diverse da quelle indicate in tabella
