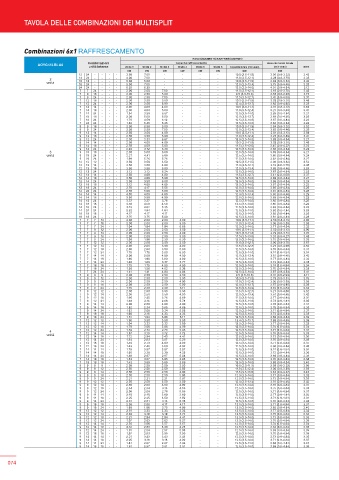

TAVOLA DELLE COMBINAZIONI DEI MULTISPLIT

Combinazioni 6x1 RAFFRESCAMENTO
FUNZIONAMENTO RAFFRESCAMENTO
AOYG45LBLA6 Combinazioni Unità 1 Unità 2 Unità 3 Capacità raffrescamento Unità 6 Capacità totale (min-max) Assorbimento totale EER
unità interne
(min-max)
Unità 5
Unità 4
kW kW kW kW kW kW kW kW
12 24 - - - - 3.50 7.00 - - - - 10.5 (3.5-11.5) 3.06 (0.8-3.32) 3.43
2 14 24 - - - - 4.00 7.00 - - - - 11.0 (3.5-12.1) 3.28 (0.8-3.70) 3.35
unità 18 18 - - - - 5.00 5.00 - - - - 10.0 (3.5-11.5) 2.92 (0.8-3.32) 3.42
18 24 - - - - 5.00 7.00 - - - - 12.0 (3.5-13.4) 3.75 (0.8-4.46) 3.20
24 24 - - - - 6.25 6.25 - - - - 12.5 (3.5-14.0) 4.01 (0.8-4.84) 3.12
7 7 24 - - - 2.00 2.00 7.00 - - - 11.0 (3.5-12.1) 3.19 (0.8-3.70) 3.45
7 9 18 - - - 2.00 2.50 5.00 - - - 9.5 (3.5-10.8) 2.55 (0.8-2.93) 3.73
7 9 24 - - - 2.00 2.50 7.00 - - - 11.5 (3.5-12.7) 3.41 (0.8-4.08) 3.37
7 12 18 - - - 2.00 3.50 5.00 - - - 10.5 (3.5-11.8) 3.02 (0.8-3.51) 3.48
7 12 24 - - - 2.00 3.50 6.90 - - - 12.4 (3.5-13.7) 3.82 (0.8-4.65) 3.25
7 14 14 - - - 2.00 4.00 4.00 - - - 10.0 (3.5-11.1) 2.81 (0.8-3.13) 3.56
7 14 18 - - - 2.00 4.00 5.00 - - - 11.0 (3.5-12.4) 3.23 (0.8-3.89) 3.41
7 14 24 - - - 1.94 3.89 6.67 - - - 12.5 (3.5-14.0) 3.89 (0.8-4.84) 3.21
7 18 18 - - - 2.00 5.00 5.00 - - - 12.0 (3.5-13.7) 3.69 (0.8-4.65) 3.25
7 18 24 - - - 1.79 4.59 6.12 - - - 12.5 (3.5-14.0) 3.87 (0.8-4.84) 3.23
7 24 24 - - - 1.60 5.45 5.45 - - - 12.5 (3.5-14.0) 3.83 (0.8-4.84) 3.26
9 9 18 - - - 2.50 2.50 5.00 - - - 10.0 (3.5-11.5) 2.84 (0.8-3.32) 3.52
9 9 24 - - - 2.50 2.50 7.00 - - - 12.0 (3.5-13.4) 3.65 (0.8-4.46) 3.29
9 12 14 - - - 2.50 3.50 4.00 - - - 10.0 (3.5-11.1) 2.81 (0.8-3.13) 3.56
9 12 18 - - - 2.50 3.50 5.00 - - - 11.0 (3.5-12.4) 3.23 (0.8-3.89) 3.41
9 12 24 - - - 2.50 3.33 6.67 - - - 12.5 (3.5-14.0) 3.89 (0.8-4.84) 3.21
9 14 14 - - - 2.50 4.00 4.00 - - - 10.5 (3.5-11.8) 3.02 (0.8-3.51) 3.48
9 14 18 - - - 2.50 4.00 5.00 - - - 11.5 (3.5-13.0) 3.45 (0.8-4.27) 3.33
9 14 24 - - - 2.40 3.72 6.38 - - - 12.5 (3.5-14.0) 3.88 (0.8-4.84) 3.22
3 9 18 18 - - - 2.50 5.00 5.00 - - - 12.5 (3.5-14.0) 3.89 (0.8-4.84) 3.21
unità 9 18 24 - - - 2.21 4.41 5.88 - - - 12.5 (3.5-14.0) 3.86 (0.8-4.84) 3.24
9 24 24 - - - 1.98 5.26 5.26 - - - 12.5 (3.5-14.0) 3.82 (0.8-4.84) 3.27
12 12 12 - - - 3.50 3.50 3.50 - - - 10.5 (3.5-11.5) 2.98 (0.8-3.32) 3.52
12 12 14 - - - 3.50 3.50 4.00 - - - 11.0 (3.5-12.1) 3.19 (0.8-3.70) 3.45
12 12 18 - - - 3.50 3.50 5.00 - - - 12.0 (3.5-13.4) 3.65 (0.8-4.46) 3.29
12 12 24 - - - 3.13 3.13 6.24 - - - 12.5 (3.5-14.0) 3.87 (0.8-4.84) 3.23
12 14 14 - - - 3.50 4.00 4.00 - - - 11.5 (3.5-12.7) 3.41 (0.8-4.08) 3.37
12 14 18 - - - 3.50 4.00 5.00 - - - 12.5 (3.5-14.0) 3.89 (0.8-4.84) 3.21
12 14 24 - - - 3.00 3.50 6.00 - - - 12.5 (3.5-14.0) 3.86 (0.8-4.84) 3.24
12 18 18 - - - 3.12 4.69 4.69 - - - 12.5 (3.5-14.0) 3.87 (0.8-4.84) 3.23
12 18 24 - - - 2.78 4.17 5.55 - - - 12.5 (3.5-14.0) 3.85 (0.8-4.84) 3.25
12 24 24 - - - 2.50 5.00 5.00 - - - 12.5 (3.5-14.0) 3.81 (0.8-4.84) 3.28
14 14 14 - - - 4.00 4.00 4.00 - - - 12.0 (3.5-13.4) 3.65 (0.8-4.46) 3.29
14 14 18 - - - 3.80 3.80 4.90 - - - 12.5 (3.5-14.0) 3.88 (0.8-4.84) 3.22
14 14 24 - - - 3.37 3.37 5.76 - - - 12.5 (3.5-14.0) 3.85 (0.8-4.84) 3.25
14 18 18 - - - 3.50 4.50 4.50 - - - 12.5 (3.5-14.0) 3.86 (0.8-4.84) 3.24
14 18 24 - - - 3.13 4.02 5.35 - - - 12.5 (3.5-14.0) 3.83 (0.8-4.84) 3.26
14 24 24 - - - 2.82 4.84 4.84 - - - 12.5 (3.5-14.0) 3.80 (0.8-4.84) 3.29
18 18 18 - - - 4.17 4.17 4.17 - - - 12.5 (3.5-14.0) 3.85 (0.8-4.84) 3.25
18 18 24 - - - 3.75 3.75 5.00 - - - 12.5 (3.5-14.0) 3.81 (0.8-4.84) 3.28
7 7 7 14 - - 2.00 2.00 2.00 4.00 - - 10.0 (3.5-11.1) 2.50 (0.8-3.13) 4.00
7 7 7 18 - - 2.00 2.00 2.00 5.00 - - 11.0 (3.5-12.4) 3.06 (0.8-3.89) 3.59
7 7 7 24 - - 1.94 1.94 1.94 6.68 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
7 7 9 12 - - 2.00 2.00 2.50 3.50 - - 10.0 (3.5-11.1) 2.50 (0.8-3.13) 4.00
7 7 9 14 - - 2.00 2.00 2.50 4.00 - - 10.5 (3.5-11.8) 2.79 (0.8-3.51) 3.76
7 7 9 18 - - 2.00 2.00 2.50 5.00 - - 11.5 (3.5-13.0) 3.33 (0.8-4.27) 3.45
7 7 9 24 - - 1.86 1.86 2.39 6.39 - - 12.5 (3.5-14.0) 3.75 (0.8-4.84) 3.33
7 7 12 12 - - 2.00 2.00 3.50 3.50 - - 11.0 (3.5-12.1) 3.00 (0.8-3.70) 3.67
7 7 12 14 - - 2.00 2.00 3.50 4.00 - - 11.5 (3.5-12.7) 3.27 (0.8-4.08) 3.52
7 7 12 18 - - 2.00 2.00 3.50 5.00 - - 12.5 (3.5-14.0) 3.78 (0.8-4.84) 3.31
7 7 12 24 - - 1.75 1.75 3.00 6.00 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
7 7 14 14 - - 2.00 2.00 4.00 4.00 - - 12.0 (3.5-13.4) 3.51 (0.8-4.46) 3.42
7 7 14 18 - - 1.90 1.90 3.80 4.90 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
7 7 14 24 - - 1.68 1.68 3.37 5.77 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
7 7 18 18 - - 1.75 1.75 4.50 4.50 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
7 7 18 24 - - 1.56 1.56 4.02 5.36 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
7 7 24 24 - - 1.41 1.41 4.84 4.84 - - 12.5 (3.5-14.0) 3.67 (0.8-4.84) 3.41
7 9 9 9 - - 2.00 2.50 2.50 2.50 - - 9.5 (3.5-10.8) 2.31 (0.8-2.93) 4.11
7 9 9 12 - - 2.00 2.50 2.50 3.50 - - 10.5 (3.5-11.8) 2.79 (0.8-3.51) 3.76
7 9 9 14 - - 2.00 2.50 2.50 4.00 - - 11.0 (3.5-12.4) 3.06 (0.8-3.89) 3.59
7 9 9 18 - - 2.00 2.50 2.50 5.00 - - 12.0 (3.5-13.7) 3.57 (0.8-4.65) 3.36
7 9 9 24 - - 1.79 2.30 2.30 6.11 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
7 9 12 12 - - 2.00 2.50 3.50 3.50 - - 11.5 (3.5-12.7) 3.27 (0.8-4.08) 3.52
7 9 12 14 - - 2.00 2.50 3.50 4.00 - - 12.0 (3.5-13.4) 3.51 (0.8-4.46) 3.42
7 9 12 18 - - 1.90 2.45 3.26 4.89 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
7 9 12 24 - - 1.68 2.16 2.88 5.78 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
7 9 14 14 - - 2.00 2.50 4.00 4.00 - - 12.5 (3.5-14.0) 3.78 (0.8-4.84) 3.31
7 9 14 18 - - 1.82 2.34 3.65 4.69 - - 12.5 (3.5-14.0) 3.75 (0.8-4.84) 3.33
7 9 14 24 - - 1.62 2.08 3.24 5.56 - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
7 9 18 18 - - 1.68 2.16 4.33 4.33 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
7 9 18 24 - - 1.51 1.94 3.88 5.17 - - 12.5 (3.5-14.0) 3.69 (0.8-4.84) 3.39
7 12 12 12 - - 1.90 3.50 3.50 3.50 - - 12.4 (3.5-13.7) 3.69 (0.8-4.65) 3.36
7 12 12 14 - - 1.94 3.33 3.33 3.90 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
7 12 12 18 - - 1.79 3.06 3.06 4.59 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
4 7 7 12 12 24 - - - - 1.59 2.73 2.73 5.45 - - - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
14
3.72
14
3.19
1.87
3.72
3.33
12.5 (3.5-14.0)
12
3.75 (0.8-4.84)
unità
7 12 14 18 - - 1.72 2.94 3.43 4.41 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
7 12 14 24 - - 1.54 2.63 3.07 5.26 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
7 12 18 18 - - 1.59 2.73 4.09 4.09 - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
7 12 18 24 - - 1.43 2.46 3.69 4.92 - - 12.5 (3.5-14.0) 3.68 (0.8-4.84) 3.40
7 14 14 14 - - 1.79 3.57 3.57 3.57 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
7 14 14 18 - - 1.65 3.30 3.30 4.25 - - 12.5 (3.5-14.0) 3.72 (0.8-4.84) 3.36
7 14 14 24 - - 1.48 2.97 2.97 5.08 - - 12.5 (3.5-14.0) 3.69 (0.8-4.84) 3.39
7 14 18 18 - - 1.53 3.07 3.95 3.95 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
7 18 18 18 - - 1.43 3.69 3.69 3.69 - - 12.5 (3.5-14.0) 3.68 (0.8-4.84) 3.40
9 9 9 9 - - 2.50 2.50 2.50 2.50 - - 10.0 (3.5-11.5) 2.59 (0.8-3.32) 3.86
9 9 9 12 - - 2.50 2.50 2.50 3.50 - - 11.0 (3.5-12.4) 3.06 (0.8-3.89) 3.59
9 9 9 14 - - 2.50 2.50 2.50 4.00 - - 11.5 (3.5-13.0) 3.33 (0.8-4.27) 3.45
9 9 9 18 - - 2.50 2.50 2.50 5.00 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
9 9 9 24 - - 2.21 2.21 2.21 5.87 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
9 9 12 12 - - 2.50 2.50 3.50 3.50 - - 12.0 (3.5-13.4) 3.51 (0.8-4.46) 3.42
9 9 12 14 - - 2.50 2.50 3.50 4.00 - - 12.5 (3.5-14.0) 3.78 (0.8-4.84) 3.31
9 9 12 18 - - 2.34 2.34 3.13 4.69 - - 12.5 (3.5-14.0) 3.75 (0.8-4.84) 3.33
9 9 12 24 - - 2.08 2.08 2.78 5.56 - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
9 9 14 14 - - 2.45 2.45 3.80 3.80 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
9 9 14 18 - - 2.25 2.25 3.50 4.50 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
9 9 14 24 - - 2.01 2.01 3.13 5.35 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
9 9 18 18 - - 2.08 2.08 4.17 4.17 - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
9 9 18 24 - - 1.88 1.88 3.75 4.99 - - 12.5 (3.5-14.0) 3.68 (0.8-4.84) 3.40
9 12 12 12 - - 2.51 3.33 3.33 3.33 - - 12.5 (3.5-14.0) 3.77 (0.8-4.84) 3.32
9 12 12 14 - - 2.39 3.19 3.19 3.73 - - 12.5 (3.5-14.0) 3.75 (0.8-4.84) 3.33
9 12 12 18 - - 2.21 2.94 2.94 4.41 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
9 12 12 24 - - 1.97 2.63 2.63 5.27 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
9 12 14 14 - - 2.30 3.06 3.57 3.57 - - 12.5 (3.5-14.0) 3.74 (0.8-4.84) 3.34
9 12 14 18 - - 2.12 2.83 3.30 4.25 - - 12.5 (3.5-14.0) 3.72 (0.8-4.84) 3.36
9 12 14 24 - - 1.91 2.54 2.97 5.08 - - 12.5 (3.5-14.0) 3.69 (0.8-4.84) 3.39
9 12 18 18 - - 1.97 2.63 3.95 3.95 - - 12.5 (3.5-14.0) 3.70 (0.8-4.84) 3.38
9 14 14 14 - - 2.21 3.43 3.43 3.43 - - 12.5 (3.5-14.0) 3.73 (0.8-4.84) 3.35
9 14 14 18 - - 2.05 3.18 3.18 4.09 - - 12.5 (3.5-14.0) 3.71 (0.8-4.84) 3.37
9 14 14 24 - - 1.84 2.87 2.87 4.92 - - 12.5 (3.5-14.0) 3.68 (0.8-4.84) 3.40
9 14 18 18 - - 1.91 2.97 3.81 3.81 - - 12.5 (3.5-14.0) 3.69 (0.8-4.84) 3.39
