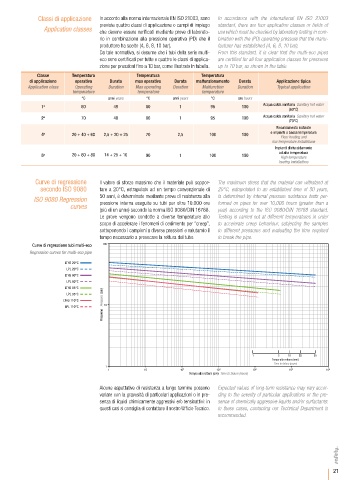

Classi di applicazione In accordo alla norma internazionale EN ISO 21003, sono In accordance with the international EN ISO 21003
previste quattro classi di applicazione o campi di impiego standard, there are four application classes or fields of
Application classes che devono essere verificati mediante prove di laborato- use which must be checked by laboratory testing in com-
rio in combinazione alla pressione operativa (PD) che il bination with the (PD) operating pressure that the manu-
produttore ha scelto (4, 6, 8, 10 bar). facturer has established (4, 6, 8, 10 bar).
Da tale normativa, si desume che i tubi della serie multi- From this standard, it is clear that the multi-eco pipes
eco sono certificati per tutte e quattro le classi di applica- are certified for all four application classes for pressures
zione per pressioni fino a 10 bar, come illustrato in tabella. up to 10 bar, as shown in the table.
Classe Temperatura Temperatura Temperatura
di applicazione operativa Durata max operativa Durata malfunzionamento Durata Applicazione tipica
Application class Operating Duration Max operating Duration Malfunction Duration Typical application
temperature temperature temperature
°C anni years °C anni years °C ore hours
1 a 60 49 80 1 95 100 Acqua calda sanitaria Sanitary hot water
(60°C)
2 a 70 49 80 1 95 100 Acqua calda sanitaria Sanitary hot water
(70°C)
Riscaldamento radiante
4 a 20 + 40 + 60 2,5 + 20 + 25 70 2,5 100 100 e impianti a bassa temperatura
Floor heating and
low temperature installations
Impianti di riscaldamento
5 a 20 + 60 + 80 14 + 25 + 10 90 1 100 100 ad alta temperatura
High temperature
heating installations
Curve di regressione Il valore di sforzo massimo che il materiale può soppor- The maximum stress that the material can withstand at
secondo ISO 9080 tare a 20°C, estrapolato ad un tempo convenzionale di 20°C, extrapolated to an established time of 50 years,
50 anni, è determinato mediante prove di resistenza alla is determined by internal pressure resistance tests per-
ISO 9080 Regression pressione interna eseguite su tubi per oltre 10.000 ore formed on pipes for over 10,000 hours (greater than a
curves
(più di un anno) secondo la norma ISO 9080/DIN 16788. year) according to the ISO 9080/DIN 16788 standard.
Le prove vengono condotte a diverse temperature allo Testing is carried out at different temperatures in order
scopo di accelerare i fenomeni di cedimento per “creep”, to accelerate creep behaviour, subjecting the samples
sottoponendo i campioni a diverse pressioni e valutando il to different pressures and evaluating the time required
tempo necessario a provocare la rottura del tubo. to break the pipe.
Curve di regressione tubi multi-eco 100
Regression curves for multi-eco pipe
LTHS 20°C
LPL 20°C
LTHS 60°C
LPL 60°C
LTHS 95°C
Pressione Pressure (bar) 10
LPL 95°C
LTHS 110°C
LPL 110°C
1 5 10 25 50
Tempo alla rottura (anni)
Time to failure (years)
1
1 10 10 2 10 3 10 4 10 5 10 6
Tempo alla rottura (ore) Time to failure (hours)
Alcune aspettative di resistenza a lungo termine possono Expected values of long-term resistance may vary accor-
variare con la gravosità di particolari applicazioni o in pre- ding to the severity of particular applications or the pre-
senza di liquidi chimicamente aggressivi e/o tensioattivi: in sence of chemically aggressive liquids and/or surfactants:
questi casi si consiglia di contattare il nostro Ufficio Tecnico. in these cases, contacting our Technical Department is
recommended.
