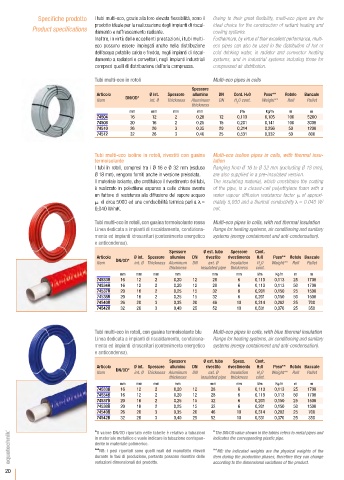

Specifiche prodotto I tubi multi-eco, grazie alla loro elevata flessibilità, sono il Owing to their great flexibility, multi-eco pipes are the
prodotto ideale per la realizzazione degli impianti di riscal- ideal choice for the construction of radiant heating and
Product specifications damento e raffrescamento radiante. cooling systems.
Inoltre, in virtù delle eccellenti prestazioni, i tubi multi- Furthermore, by virtue of their excellent performance, multi-
eco possono essere impiegati anche nella distribuzione eco pipes can also be used in the distribution of hot or
dell’acqua potabile calda e fredda, negli impianti di riscal- cold drinking water, in radiator and convector heating
damento a radiatori e convettori, negli impianti industriali systems, and in industrial systems including those for
compresi quelli di distribuzione dell’aria compressa. compressed air distribution.
Tubi multi-eco in rotoli Multi-eco pipes in coils
Spessore
Articolo Ø int. Spessore allumino DN Cont. H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN H O cont. Weight** Roll Pallet
2
thickness
mm mm mm mm l/m Kg/m m m
74504 16 12 2 0,20 12 0,113 0,105 100 5200
74508 20 16 2 0,25 15 0,201 0,141 100 3000
74510 26 20 3 0,35 20 0,314 0,256 50 1200
74512 32 26 3 0,40 25 0,531 0,332 50 800
Tubi multi-eco isoline in rotoli, rivestiti con guaina Multi-eco isoline pipes in coils, with thermal insu-
termoisolante lation
I tubi in rotoli, compresi tra i Ø 16 e Ø 32 mm (escluso Ranging from Ø 16 to Ø 32 mm (excluding Ø 18 mm),
Ø 18 mm), vengono forniti anche in versione preisolata. are also supplied in a pre-insulated version.
Il materiale isolante, che costituisce il rivestimento dei tubi, The insulating material, which constitutes the coating
è realizzato in polietilene espanso a celle chiuse avente of the pipe, is a closed-cell polyethylene foam with a
un fattore di resistenza alla diffusione del vapore acqueo water vapour diffusion resistance factor of approxi-
di circa 5000 ed una conducibilità termica pari a l= mately 5,000 and a thermal conductivity l= 0.040 W/
0,040 W/mK. mK.
Tubi multi-eco in rotoli, con guaina termoisolante rossa Multi-eco pipes in coils, with red thermal insulation
Linea dedicata a impianti di riscaldamento, condiziona- Range for heating systems, air conditioning and sanitary
mento ed impianti idrosanitari (contenimento energetico systems (energy containment and anti-condensation).
e anticondensa).
Spessore Ø est. tubo Spessore Cont.
Articolo Ø int. Spessore allumino DN rivestito rivestimento H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN ext. Ø Insulation H O Weight** Roll Pallet
2
thickness insulated pipe thickness cont.
mm mm mm mm mm mm l/m Kg/m m m
74533R 16 12 2 0,20 12 28 6 0,113 0,113 25 1700
74534R 16 12 2 0,20 12 28 6 0,113 0,113 50 1700
74537R 20 16 2 0,25 15 32 6 0,201 0,150 25 1500
74538R 20 16 2 0,25 15 32 6 0,201 0,150 50 1500
74540R 26 20 3 0,35 20 46 10 0,314 0,282 25 700
74542R 32 26 3 0,40 25 52 10 0,531 0,370 25 350
Tubi multi-eco in rotoli, con guaina termoisolante blu Multi-eco pipes in coils, with blue thermal insulation
Linea dedicata a impianti di riscaldamento, condiziona- Range for heating systems, air conditioning and sanitary
mento ed impianti idrosanitari (contenimento energetico systems (energy containment and anti-condensation).
e anticondensa).
Spessore Ø est. tubo Spess. Cont.
Articolo Ø int. Spessore allumino DN rivestito rivestimento H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN ext. Ø Insulation H O Weight** Roll Pallet
2
thickness insulated pipe thickness cont.
mm mm mm mm mm mm l/m Kg/m m m
74533B 16 12 2 0,20 12 28 6 0,113 0,113 25 1700
74534B 16 12 2 0,20 12 28 6 0,113 0,113 50 1700
74537B 20 16 2 0,25 15 32 6 0,201 0,150 25 1500
74538B 20 16 2 0,25 15 32 6 0,201 0,150 50 1500
74540B 26 20 3 0,35 20 46 10 0,314 0,282 25 700
74542B 32 26 3 0,40 25 52 10 0,531 0,370 25 350
*Il valore DN/OD riportato nelle tabelle è relativo a tubazioni *The DN/OD value shown in the tables refers to metal pipes and
in materiale metallico e vuole indicare la tubazione corrispon- indicates the corresponding plastic pipe.
dente in materiale polimerico.
**NB: i pesi riportati sono quelli reali del manufatto rilevati **NB: the indicated weights are the physical weights of the
durante le fasi di produzione, pertanto possono risentire delle item during the production phases, therefore they can change
variazioni dimensionali del prodotto. according to the dimensional variations of the product.
