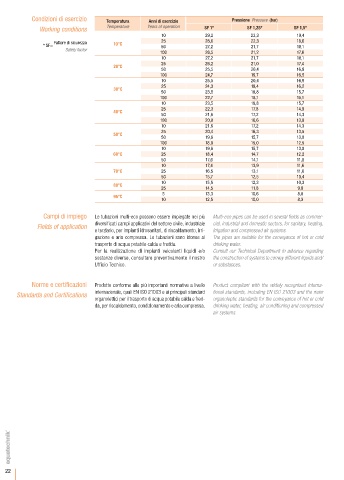

Page 24 - AQUATECHNIK - SAFETY
P. 24
Condizioni di esercizio Temperatura Anni di esercizio Pressione Pressure (bar)
Working conditions Temperature Years of operation SF 1* SF 1,25* SF 1,5*
10 29,2 23,3 19,4
Fattore di sicurezza 10°C 25 28,0 22,3 18,6
* SF= 50 27,2 21,7 18,1
Safety factor
100 26,5 21,2 17,6
10 27,2 21,7 18,1
25 26,2 21,0 17,4
20°C
50 25,5 20,4 16,9
100 24,7 19,7 16,5
10 25,5 20,4 16,9
25 24,3 19,4 16,2
30°C
50 23,5 18,8 15,7
100 22,7 18,1 15,1
10 23,5 18,8 15,7
25 22,3 17,8 14,9
40°C
50 21,6 17,2 14,3
100 20,8 16,6 13,8
10 21,6 17,2 14,3
25 20,4 16,3 13,5
50°C
50 19,6 15,7 13,0
100 18,8 15,0 12,5
10 19,6 15,7 13,0
60°C 25 18,4 14,7 12,2
50 17,6 14,1 11,8
10 17,4 13,9 11,6
70°C 25 16,5 13,1 11,0
50 15,7 12,5 10,4
10 15,5 12,3 10,3
80°C
25 14,5 11,6 9,6
5 13,3 10,6 8,8
95°C
10 12,5 10,0 8,3
Campi di impiego Le tubazioni multi-eco possono essere impiegate nei più Multi-eco pipes can be used in several fields as commer-
Fields of application diversificati campi applicativi del settore civile, industriale cial, industrial and domestic sectors, for sanitary, heating,
e terziario, per impianti idrosanitari, di riscaldamento, irri- irrigation and compressed air systems.
gazione e aria compressa. Le tubazioni sono idonee al The pipes are suitable for the conveyance of hot or cold
trasporto di acqua potabile calda e fredda. drinking water.
Per la realizzazione di impianti veicolanti liquidi e/o Consult our Technical Department in advance regarding
sostanze diverse, consultare preventivamente il nostro the construction of systems to convey different liquids and/
Ufficio Tecnico. or substances.
Norme e certificazioni Prodotto conforme alle più importanti normative a livello Product compliant with the widely recognised interna-
Standards and Certifications internazionale, quali EN ISO 21003 e ai principali standard tional standards, including EN ISO 21003 and the main
organolettici per il trasporto di acqua potabile calda e fred- organoleptic standards for the conveyance of hot or cold
da, per riscaldamento, condizionamento e aria compressa. drinking water, heating, air conditioning and compressed
air systems.
22 23
