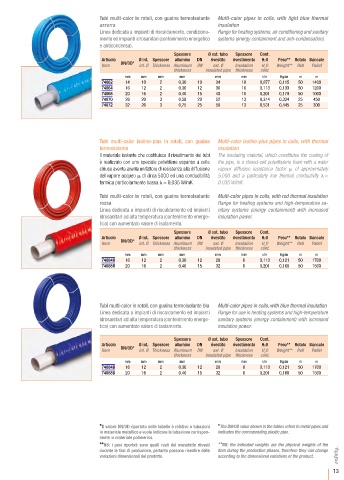

Tubi multi-calor in rotoli, con guaina termoisolante Multi-calor pipes in coils, with light blue thermal
azzurra insulation
Linea dedicata a impianti di riscaldamento, condiziona- Range for heating systems, air conditioning and sanitary
mento ed impianti idrosanitari (contenimento energetico systems (energy containment and anti-condensation).
e anticondensa).
Spessore Ø est. tubo Spessore Cont.
Articolo Ø int. Spessore allumino DN rivestito rivestimento H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN ext. Ø Insulation H O Weight** Roll Pallet
2
thickness insulated pipe thickness cont.
mm mm mm mm mm mm l/m Kg/m m m
74062 14 10 2 0,30 10 34 10 0,077 0,115 50 1400
74064 16 12 2 0,30 12 36 10 0,113 0,133 50 1200
74068 20 16 2 0,40 15 40 10 0,201 0,179 50 1000
74070 26 20 3 0,58 20 52 13 0,314 0,334 25 450
74072 32 26 3 0,75 25 58 13 0,531 0,445 25 300
Tubi multi-calor isoline-plus in rotoli, con guaina Multi-calor isoline-plus pipes in coils, with thermal
termoisolante insulation
Il materiale isolante che costituisce il rivestimento dei tubi The insulating material, which constitutes the coating of
è realizzato con uno speciale polietilene espanso a celle the pipe, is a closed-cell polyethylene foam with a water
chiuse avente avente un fattore di resistenza alla diffusione vapour diffusion resistance factor of approximately
del vapore acqueo di circa 5000 ed una conducibilità 5,000 and a particularly low thermal conductivity l=
termica particolarmente bassa l= 0,035 W/mK. 0.035 W/mK.
Tubi multi-calor in rotoli, con guaina termoisolante Multi-calor pipes in coils, with red thermal insulation
rossa Range for heating systems and high-temperature sa-
Linea dedicata a impianti di riscaldamento ed impianti nitary systems (energy containment) with increased
idrosanitari ad alta temperatura (contenimento energe- insulation power.
tico) con aumentato valore di isolamento.
Spessore Ø est. tubo Spessore Cont.
Articolo Ø int. Spessore allumino DN rivestito rivestimento H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN ext. Ø Insulation H O Weight** Roll Pallet
2
thickness insulated pipe thickness cont.
mm mm mm mm mm mm l/m Kg/m m m
74084R 16 12 2 0,30 12 28 6 0,113 0,121 50 1700
74088R 20 16 2 0,40 15 32 6 0,201 0,166 50 1500
Tubi multi-calor in rotoli, con guaina termoisolante blu Multi-calor pipes in coils, with blue thermal insulation
Linea dedicata a impianti di riscaldamento ed impianti Range for use in heating systems and high-temperature
idrosanitari ad alta temperatura (contenimento energe- sanitary systems (energy containment) with increased
tico) con aumentato valore di isolamento. insulation power.
Spessore Ø est. tubo Spessore Cont.
Articolo Ø int. Spessore allumino DN rivestito rivestimento H20 Peso** Rotolo Bancale
Item DN/OD* int. Ø Thickness Aluminum DN ext. Ø Insulation H O Weight** Roll Pallet
2
thickness insulated pipe thickness cont.
mm mm mm mm mm mm l/m Kg/m m m
74084B 16 12 2 0,30 12 28 6 0,113 0,121 50 1700
74088B 20 16 2 0,40 15 32 6 0,201 0,166 50 1500
*Il valore DN/OD riportato nelle tabelle è relativo a tubazioni *The DN/OD value shown in the tables refers to metal pipes and
in materiale metallico e vuole indicare la tubazione corrispon- indicates the corresponding plastic pipe.
dente in materiale polimerico.
**NB: i pesi riportati sono quelli reali del manufatto rilevati **NB: the indicated weights are the physical weights of the
durante le fasi di produzione, pertanto possono risentire delle item during the production phases, therefore they can change
variazioni dimensionali del prodotto. according to the dimensional variations of the product.
